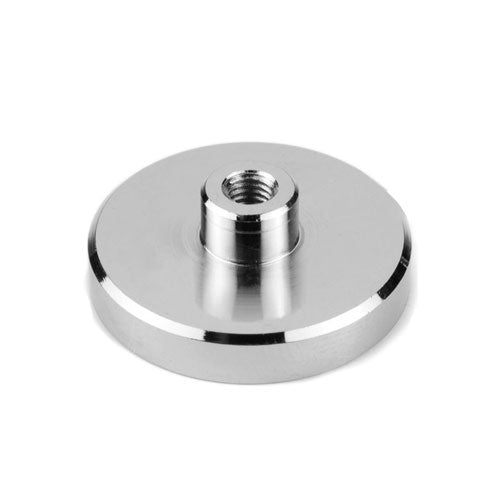

Female Thread Neodymium Pot Magnet - Diameter 60mm x 30mm

Product code: AMFYPD60

$129.29for 1 to 9 items
$105.26buy 10 to 99 itemsand save 19%
$95.78buy 100+ itemsand save 26%
Total
$129.29

Prices are GST Incl.

Volume pricing available on request

Leading Magnet Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Female Thread Neodymium Pot Magnet - Diameter 60mm x 30mm

Product Code AMFYPD60
Pull Force* 113kg
Weight 270 gm
Style Rare Earth female thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 15mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This rare earth female threaded pot magnet has a diameter of 60mm, a total height of 30mm and a magnet housing thickness of 15mm. It has an 8mm female thread. This female threaded magnet has a pull force of 113kg and a weight of 270 grams. It is identified by the AMF magnet part number AMFYPD60.

Uses for our rare earth female thread pot magnets:

These Neodymium Pot magnets have a Female Thread for convenient attachment with a bolt. The steel capping protects the magnet from damage while also deflecting the magnetic force to the base, giving it excellent holding capability and increased attractive power. Non-metallic objects can be fitted with these magnets and then attached to metal surfaces like pallet racking, machinery or vehicles for example. In other applications, a threaded rod can be inserted to display advertising material or signage which is attached magnetically and easily removed or relocated.





ModelNo. D1Ø M H h Holding force(kg) Weight (g)
AMFYPD10 10 5.5 3 12 5 2.2 3.5
AMFYPD12 12 6 3 13 5 3.2 5
AMFYPD16 16 6 4 13 5 5.5 8
AMFYPD20 20 8 4 15 7 9 17
AMFYPD25 25 10 5 17 8 22 32
AMFYPD32 32 10 6 18 8 34 47
AMFYPD36 36 10 6 18 8 41 59
AMFYPD42 42 10 6 20 9 68 87
AMFYPD48 48 12 8 24 11.5 81 132
AMFYPD60 60 14 8 30 15 113 270
AMFYPD75 75 16 10 34 18 164 552

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
