Female Thread Neodymium Pot Magnet - Diameter 16mm x 13mm
Product code: AMFYPD16
Female Thread Neodymium Pot Magnet - Diameter 16mm x 13mm
Magnetic Product Description:

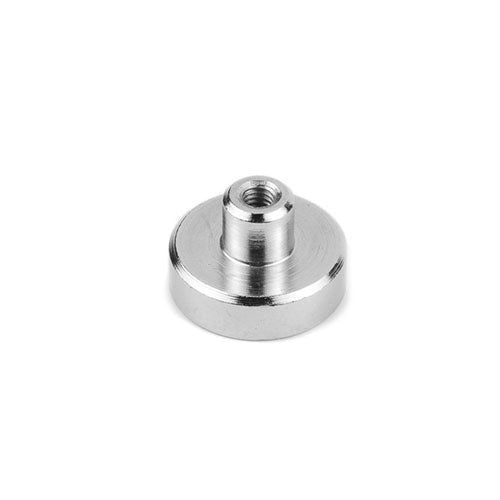

This rare earth female threaded pot magnet has a diameter of 16mm, a total height of 13mm and a magnet housing thickness of 5mm. It has a 4mm female thread with an external boss of 8mm. This female threaded magnet has a pull force of 5.5kg and a weight of 8 grams. It is identified by the AMF magnet part number AMFYPD16.
Uses for our rare earth female thread pot magnets:
Our rare earth holding pot magnets (Female Thread) are ideal for attaching onto brackets or shelving with a bolt or for attachment to threaded rods. These Neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap for extra protection against chipping or cracking. Due to the protective cover on these pot magnets, the magnetic force is pushed toward the base so they are effectively a single-sided magnet.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
Female Thread Neodymium Pot Magnet - Diameter 16mm x 13mm (AMFYPD16)
| Grade | |
|---|---|
| N35 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence | |
| 1.18-1.25 | N/A |
| Coercivity | |
| 11.8-12.5>=859 | N/A |
| Intrinsic Coercivity | |
| >=10.8 | N/A |
| Max Energy Product | |
| >=955 | N/A |
| Grade | N35 |
| Max Operating Temperature °C | <=80 |
| Remanence | 1.18-1.25 |
| Coercivity | 11.8-12.5>=859 |
| Intrinsic Coercivity | >=10.8 |
| Max Energy Product | >=955 |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
Magnetic Product Description:
This rare earth female threaded pot magnet has a diameter of 16mm, a total height of 13mm and a magnet housing thickness of 5mm. It has a 4mm female thread with an external boss of 8mm. This female threaded magnet has a pull force of 5.5kg and a weight of 8 grams. It is identified by the AMF magnet part number AMFYPD16.
Uses for our rare earth female thread pot magnets:
Our rare earth holding pot magnets (Female Thread) are ideal for attaching onto brackets or shelving with a bolt or for attachment to threaded rods. These Neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap for extra protection against chipping or cracking. Due to the protective cover on these pot magnets, the magnetic force is pushed toward the base so they are effectively a single-sided magnet.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
Female Thread Neodymium Pot Magnet - Diameter 16mm x 13mm (AMFYPD16)
| Grade | |
|---|---|
| N35 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence | |
| 1.18-1.25 | N/A |
| Coercivity | |
| 11.8-12.5>=859 | N/A |
| Intrinsic Coercivity | |
| >=10.8 | N/A |
| Max Energy Product | |
| >=955 | N/A |
| Grade | N35 |
| Max Operating Temperature °C | <=80 |
| Remanence | 1.18-1.25 |
| Coercivity | 11.8-12.5>=859 |
| Intrinsic Coercivity | >=10.8 |
| Max Energy Product | >=955 |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
