Female Thread Neodymium Pot Magnet - Diameter 25mm x 17mm

Product code: AMFYPD25

$10.28for 1 to 9 items
$7.99buy 10 to 99 itemsand save 22%
$6.64buy 100+ itemsand save 35%
Total
$10.28

Prices are GST Incl.

Volume pricing available on request

Leading Magnet Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

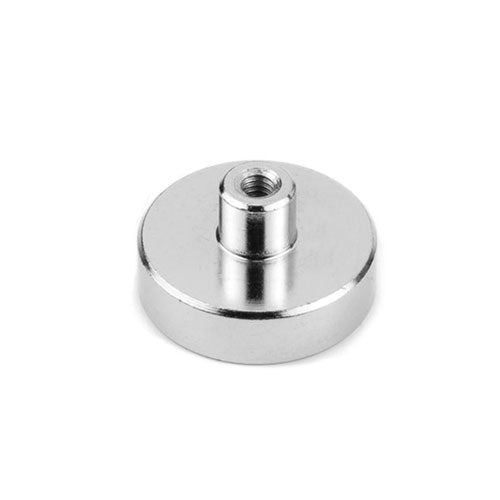

Female Thread Neodymium Pot Magnet - Diameter 25mm x 17mm

Rated 4.0 out of 5
Based on 2 reviews
Product Code AMFYPD25
Pull Force* 22kg
Weight 32 gm
Style Rare Earth female thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 8mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This rare earth female threaded pot magnet has a diameter of 25mm, a total height of 17mm and a magnet housing thickness of 10mm. It has a 5mm female thread. This female threaded magnet has a pull force of 22kg and a weight of 32 grams. It is identified by the AMF magnet part number AMFYPD25.

Uses for our rare earth female thread pot magnets:

These Neodymium Pot magnets have a Female Thread that allows them to be attached to any surface with a bolt. The steel capping protects the magnet from damage and redirects the magnetic flow towards the base for increased holding ability. Alternatively, a threaded rod or bar can be inserted to attach or display advertising and then attached to metallic surfaces. This enables them to be easily removed and replaced as required.



ModelNo. D1Ø M H h Holding force(kg) Weight (g)
AMFYPD10 10 5.5 3 12 5 2.2 3.5
AMFYPD12 12 6 3 13 5 3.2 5
AMFYPD16 16 6 4 13 5 5.5 8
AMFYPD20 20 8 4 15 7 9 17
AMFYPD25 25 10
5 17 8 22 32
AMFYPD32 32 10 6 18 8 34 47
AMFYPD36 36 10 6 18 8 41 59
AMFYPD42 42 10 6 20 9 68 87
AMFYPD48 48 12 8 24 11.5 81 132
AMFYPD60 60 14 8 30 15 113 270
AMFYPD75 75 16 10 34 18 164 552
average rating 4.0 out of 5
Based on 2 reviews
  • 5 Stars
    0 Reviews
  • 4 Stars
    2 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
2 Reviews
Reviewed by Martin
I recommend this product
Rated 4 out of 5
Review posted

They work well

The size & thickness is as stated. The magnet has been used in a hole in steel. With the threaded part cut off it fills the gap with increased grip than a straight magnet of the same size. :)

Loading...
Was this helpful?
Reviewed by Peter
I recommend this product
Rated 4 out of 5
Review posted

good product easy company to deal with

Product does what it claimed and the process was easy and straightforward and quick.

Loading...
Was this helpful?

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
