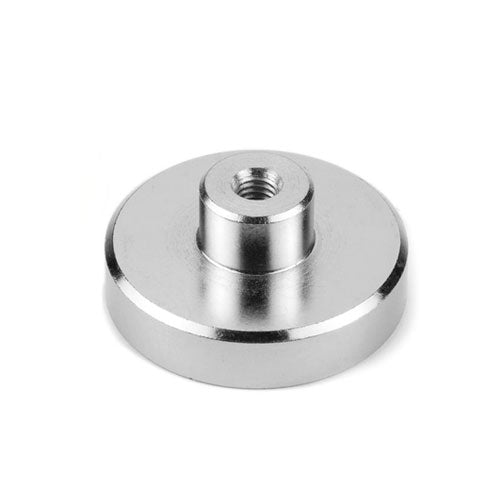

Female Thread Neodymium Pot Magnet - Diameter 36mm x 18mm

Product code: AMFYPD36

$20.26for 1 to 9 items
$15.19buy 10 to 99 itemsand save 25%
$13.52buy 100+ itemsand save 33%

Prices are GST Incl.

Volume pricing available on request

Female Thread Neodymium Pot Magnet - Diameter 36mm x 18mm

Product Code AMFYPD36
Pull Force* 41kg
Weight 59 gm
Style Rare Earth female thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 8mm

Magnetic Product Description:

This rare earth female threaded pot magnet has a diameter of 36mm, a total height of 18mm and a magnet housing thickness of 8mm. It has a 6mm female thread. This female threaded magnet has a pull force of 41kg and a weight of 59 grams. It is identified by the AMF magnet part number AMFYPD36.

Uses for our rare earth female thread pot magnets:

These Neodymium Pot magnets have a Female Thread that allows them to be attached to any surface with a bolt. The steel capping protects the magnet from damage and redirects the magnetic flow towards the base for increased holding ability. Alternatively, a threaded rod or bar can be inserted to attach or display advertising material or signage and then attached to metallic surfaces. This enables them to be easily removed and replaced as required.

ModelNo. D1Ø M H h Holding force(kg) Weight (g)
AMFYPD10 10 5.5 3 12 5 2.2 3.5
AMFYPD12 12 6 3 13 5 3.2 5
AMFYPD16 16 6 4 13 5 5.5 8
AMFYPD20 20 8 4 15 7 9 17
AMFYPD25 25 8
5 17 8 22 32
AMFYPD32 32 10 6 18 8 34 47
AMFYPD36 36 10 6 18 8 41 59
AMFYPD42 42 10 6 20 9 68 87
AMFYPD48 48 12 8 24 11.5 81 132
AMFYPD60 60 14 8 30 15 113 270
AMFYPD75 75 16 10 34 18 164 552

Female Thread Neodymium Pot Magnet - Diameter 36mm x 18mm (AMFYPD36)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
