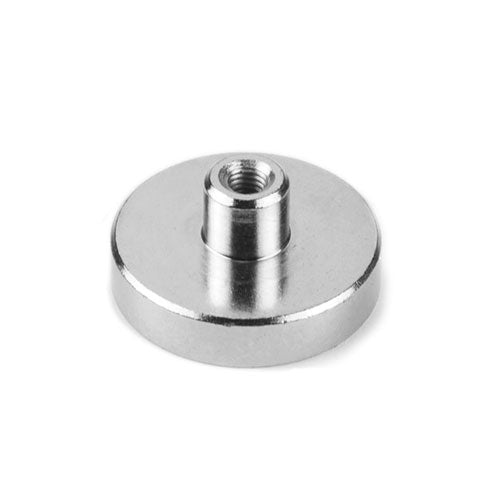

Female Thread Neodymium Pot - Diameter 32mm x 18mm

Product code: AMFYPD32

$11.67for 1 to 9 items
$9.46buy 10 to 99 itemsand save 19%
$7.89buy 100+ itemsand save 32%

Prices are GST Incl.

Volume pricing available on request

Female Thread Neodymium Pot - Diameter 32mm x 18mm

Rated 5.0 out of 5
1 Review
Product Code AMFYPD32
Pull Force* 34kg
Weight 47 gm
Style Rare Earth female thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 8mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This rare earth female threaded pot magnet has a diameter of 32mm, a total height of 18mm and a magnet housing thickness of 8mm. It has a 6mm female thread with an external boss of 10mm. This female threaded magnet has a pull force of 34kg and a weight of 47 grams. It is identified by the AMF magnet part number AMFYPD32.

Uses for our rare earth female thread pot magnets:


These Neodymium Pot magnets have a Female Thread that allows them to be attached to any surface with a bolt. The steel capping protects the magnet from damage and redirects the magnetic flow towards the base for increased holding ability. Alternatively, a threaded rod or bar can be inserted to attach or display advertising material or signage and then attached to metallic surfaces. This enables them to be easily removed and replaced as required.



ModelNo. D1Ø M H h Holding force(kg) Weight (g)
AMFYPD10 10 5.5 3 12 5 2.2 3.5
AMFYPD12 12 6 3 13 5 3.2 5
AMFYPD16 16 6 4 13 5 5.5 8
AMFYPD20 20 8 4 15 7 9 17
AMFYPD25 25 10 5 17 8 22 32
AMFYPD32 32 10 6 18 8 34 47
AMFYPD36 36 10 6 18 8 41 59
AMFYPD42 42 10 6 20 9 68 87
AMFYPD48 48 12 8 24 11.5 81 132
AMFYPD60 60 14 8 30 15 113 270
AMFYPD75 75 16 10 34 18 164 552

Female Thread Neodymium Pot - Diameter 32mm x 18mm (AMFYPD32)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A
average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Graham T.
I recommend this product
Rated 5 out of 5
Review posted

Versatile solution to many problems

We use them for many applications in major mechanical shuts from simple cable tidies (Keeping extension leads up when combined with a M6 U Bolt 80mm Nb) to holding up lights, to clamping fire blankets to form fire boundaries for hotwork inside a vessel.
