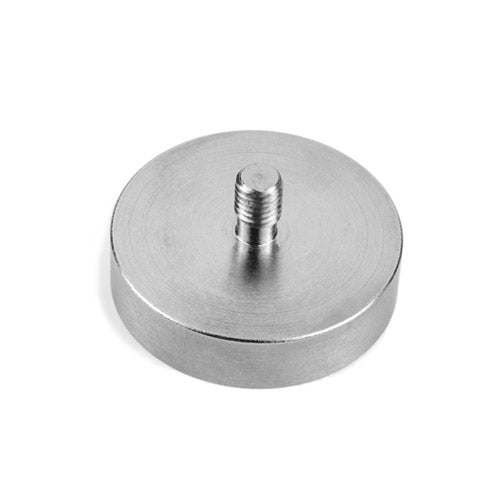

Male Thread Neodymium Pot Magnet - Diameter 60mm x 30mm

Product code: AMFYPC60

$129.29for 1 to 9 items
$105.26buy 10 to 99 itemsand save 19%
$95.78buy 100+ itemsand save 26%
Total
$129.29

Prices are GST Incl.

Volume pricing available on request

Leading Magnet Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Male Thread Neodymium Pot Magnet - Diameter 60mm x 30mm

Product Code AMFYPC60
Pull Force* 113 kg
Weight 254 gm
Style Rare Earth male thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 15mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This rare earth male threaded pot magnet has a diameter of  60mm, a total height of 30mm and a magnet housing thickness of 15mm. It has a M8  thread with an external boss of 15mm. This male threaded magnet has a pull force of 113kg and a weight of 254 grams. It is identified by the AMF magnet part number AMFYPC60.

Uses for our Rare Earth male thread pot magnets:

Our male threaded rare earth holding pot magnets are designed to be used with a washer and nut. These neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap for extra protection against chipping or cracking.

ModelNo. M H h Holding force (kg) Weight (g)
AMFYPC10 10 3 12 5 2.2 3.5
AMFYPC12 12 3 13 5 3.2 5
AMFYPC16 16 4 13 5 5.5 7.5
AMFYPC20 20 4 15 7 9 16
AMFYPC25 25 5 17 8 22 30
AMFYPC32 32 6 18 8 34 45
AMFYPC36 36 6 18 8 41 57
AMFYPC42 42 6 & 8 20 9 68 84
AMFYPC48 48 8 24 11.5 81 130
AMFYPC60 60 8 30 15 113 254
AMFYPC75 75 10 34 15 164 550

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
