Male Thread Neodymium Pot Magnet - Diameter 25mm x 17mm

Product code: AMFYPC25

$10.28for 1 to 9 items
$7.99buy 10 to 99 itemsand save 22%
$6.64buy 100+ itemsand save 35%

Prices are GST Incl.

Volume pricing available on request

Male Thread Neodymium Pot Magnet - Diameter 25mm x 17mm

Rated 5.0 out of 5
Based on 2 reviews
Product Code AMFYPC25
Pull Force* 22 kg
Weight 30 gm
Style Rare Earth male thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 8mm

Magnetic Product Description:

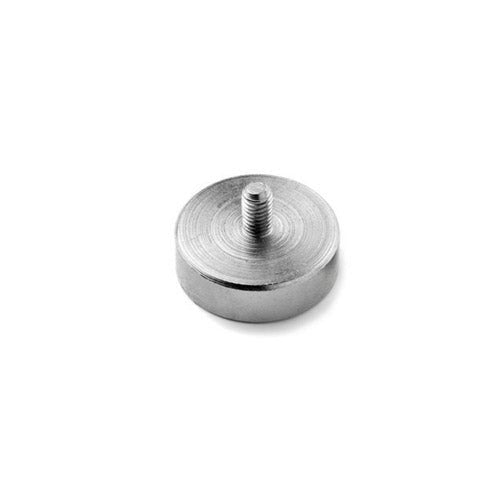

This rare earth male threaded pot magnet has a diameter of  25mm, a total height of 17mm and a magnet housing thickness of 8mm. It has a M5  thread with an external boss of 9mm. This male threaded magnet has a pull force of 22kg and a weight of 30 grams. It is identified by the AMF magnet part number AMFYPC25.

Uses for our Rare Earth male thread pot magnets:

Our male threaded rare earth holding pot magnets are designed to be attached to non-metallic material using a washer and nut. These neodymium holding pot magnets have a mild steel cap for extra protection against damage. Due to the protective capping on the threaded side, magnetic flow is diverted to the base and increases their holding ability considerably.

ModelNo. M H h Holding force (kg) Weight (g)
AMFYPC10 10 3 12 5 2.2 3.5
AMFYPC12 12 3 13 5 3.2 5
AMFYPC16 16 4 13 5 5.5 7.5
AMFYPC20 20 4 15 7 9 16
AMFYPC25 25 5 17 8 22 30
AMFYPC32 32 6 18 8 34 45
AMFYPC36 36 6 18 8 41 57
AMFYPC42 42 6 & 8 20 9 68 84
AMFYPC48 48 8 24 11.5 81 130
AMFYPC60 60 8 30 15 113 254
AMFYPC75 75 10 34 15 164 550

Male Thread Neodymium Pot Magnet - Diameter 25mm x 17mm (AMFYPC25)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
