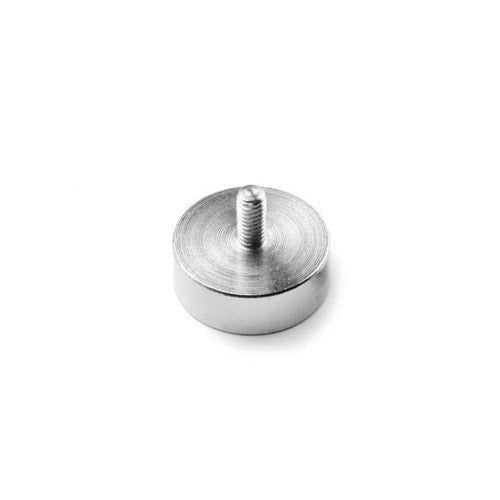

Male Thread Neodymium Pot Magnet - Diameter 20mm x 16mm

Product code: AMFYPC20

$6.98for 1 to 9 items
$6.10buy 10 to 99 itemsand save 13%
$4.81buy 100+ itemsand save 31%
Total
$6.98

Prices are GST Incl.

Volume pricing available on request

Leading Magnet Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Male Thread Neodymium Pot Magnet - Diameter 20mm x 16mm

Rated 5.0 out of 5
Based on 3 reviews
Product Code AMFYPC20
Pull Force* 9 kg
Weight 16 gm
Style Rare Earth male thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 7mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This rare earth male threaded pot magnet has a diameter of  20mm, a total height of 16mm and a magnet housing thickness of 7mm. It has a M4  thread with an external boss of 8mm. This male threaded magnet has a pull force of 9kg and a weight of 16 grams. It is identified by the AMF magnet part number AMFYPC20.

Uses for our Rare Earth male thread pot magnets:

Our Male Thread Rare Earth holding pot magnets are designed to be secured into position using a washer and nut. These high strength magnets have a mild steel capping for protection from damage. This protective cover also reflects the flow of magnetic power downward and increases their holding power at the base. Any material that can be drilled can now have magnetic properties. Timber, plastic canvas or similar materials can be attached to metal for storage, protection or decorative purposes.

ModelNo. M H h Holding force (kg) Weight (g)
AMFYPC10 10 3 12 5 2.2 3.5
AMFYPC12 12 3 13 5 3.2 5
AMFYPC16 16 4 13 5 5.5 7.5
AMFYPC20 20 4 16 7 9 16
AMFYPC25 25 5 17 8 22 30
AMFYPC32 32 6 18 8 34 45
AMFYPC36 36 6 18 8 41 57
AMFYPC42 42 6 & 8 20 9 68 84
AMFYPC48 48 8 24 11.5 81 130
AMFYPC60 60 8 30 15 113 254
AMFYPC75 75 10 34 15 164 550
average rating 5.0 out of 5
Based on 3 reviews
  • 5 Stars
    3 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
3 Reviews
Reviewed by Lawrie K.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

magnets

Very good. Ideal for my purpose.

Loading...
Was this helpful?
Reviewed by David W.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

D W

Very suitable for purpose.

Loading...
Was this helpful?
Reviewed by Martin C.
I recommend this product
Rated 5 out of 5
Review posted

Adapted as hangers

I used four male thread neodymium pots, together with four locking nuts, to secure two aluminium tool hooks (two pots per hook) to the inside wall of a tool trailer. I wanted to avoid drilling into the trailer to avoid potential corrosion.

Loading...
Was this helpful?

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
