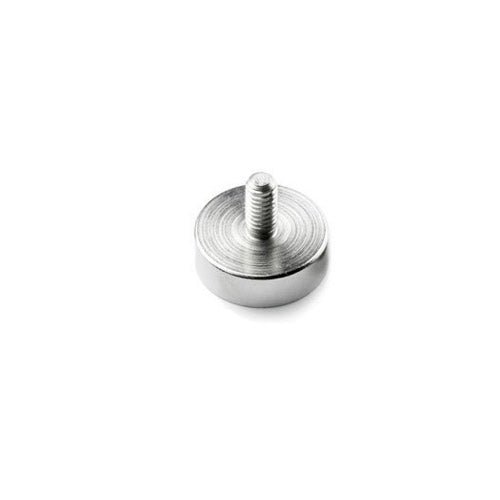

Male Thread Neodymium Pot Magnet - Diameter 16mm x 13mm

Product code: AMFYPC16

$3.22for 1 to 9 items
$2.80buy 10 to 99 itemsand save 13%
$2.10buy 100+ itemsand save 34%

Prices are GST Incl.

Volume pricing available on request

Male Thread Neodymium Pot Magnet - Diameter 16mm x 13mm

Rated 5.0 out of 5
4 Reviews
Product Code AMFYPC16
Pull Force* 5.5 kg
Weight 8 gm
Style Rare Earth male thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 5mm

Magnetic Product Description:

This rare earth male threaded pot magnet has a diameter of  16mm, a total height of 13mm and a magnet housing thickness of 5mm. It has a M4 thread with an external boss of 8mm. This male threaded magnet has a pull force of 5.5kg and a weight of 8 grams. It is identified by the AMF magnet part number AMFYPC16.

Uses for our Rare Earth male thread pot magnets:

Our Male Threaded Rare Earth Holding Pot magnets are designed for attachment using with a washer and nut. The Neodymium magnets are capped in a mild steel covering for protection against damage, however, the capping also increases magnetic flow to the base surface and magnifies its holding power. They will easily attach to timber, plastic or any thin material with a hole.

ModelNo. M H h Holding force(kg) Weight (g)
AMFYPC10 10 3 12 5 2.2 3.5
AMFYPC12 12 3 13 5 3.2 5
AMFYPC16 16 4 13 5 5.5 7.5
AMFYPC20 20 4 15 7 9 16
AMFYPC25 25 5 17 8 22 30
AMFYPC32 32 6 18 8 34 45
AMFYPC36 36 6 18 8 41 57
AMFYPC42 42 6 & 8 20 9 68 84
AMFYPC48 48 8 24 11.5 81 130
AMFYPC60 60 8 30 15 113 254
AMFYPC75 75 10 34 15 164 550

Male Thread Neodymium Pot Magnet - Diameter 16mm x 13mm (AMFYPC16)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 4 reviews
  • 5 Stars
    4 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
4 Reviews
Reviewed by Gabrielle
I recommend this product
Rated 5 out of 5
Review posted

Great product. Exactly as described.

Perfect for my project. Price was fair. Product exactly as described. Delivery was extremely quick.

Loading...
Was this helpful?
Reviewed by Lorri
I recommend this product
Rated 5 out of 5
Review posted

Magnets

They arrived early . They were exactly what they said and the quality was great . I am very happy with my purchase

Loading...
Was this helpful?
Reviewed by Sweep S.
I recommend this product
Rated 5 out of 5
Review posted

Swinging in Gutters

Great little magnets. Perfect for the fridge as they strong but easy to remove from the surface at anytime. Looking to buy a bigger magnet to test out with hobby.

Loading...
Was this helpful?
Reviewed by richard s.
I recommend this product
Rated 5 out of 5
Review posted

No improvement possible

good strong magnets that do the job - quickly despatched, well packaged. 100% OK

Loading...
Was this helpful?
