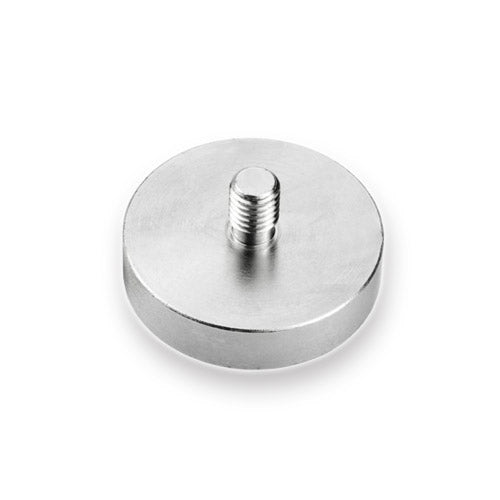

Male Thread Neodymium Pot Magnet - Diameter 48mm x 24mm

Product code: AMFYPC48

$29.25for 1 to 9 items
$21.06buy 10 to 99 itemsand save 28%
$15.79buy 100+ itemsand save 46%

Prices are GST Incl.

Volume pricing available on request

Male Thread Neodymium Pot Magnet - Diameter 48mm x 24mm

Product Code AMFYPC48
Pull Force* 81 kg
Weight 130 gm
Style Rare Earth male thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 11.5mm

Magnetic Product Description:

This rare earth male threaded pot magnet has a diameter of  48mm, a total height of 24mm and a magnet housing thickness of 11.5mm. It has a M8  thread with an external boss of 12.5mm. This male threaded magnet has a pull force of 81kg and a weight of 130 grams. It is identified by the AMF magnet part number AMFYPC48.

Uses for our Rare Earth male thread pot magnets:

Our male threaded rare earth holding pot magnets are designed to be used with a washer and nut. These neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap for protection against damage. Due to the protective cover on these pot magnets, they are hard-wearing and long-lasting.

ModelNo. M H h Holding force(kg) Weight (g)
AMFYPC10 10 3 12 5 2.2 3.5
AMFYPC12 12 3 13 5 3.2 5
AMFYPC16 16 4 13 5 5.5 7.5
AMFYPC20 20 4 15 7 9 16
AMFYPC25 25 5 17 8 22 30
AMFYPC32 32 6 18 8 34 45
AMFYPC36 36 6 18 8 41 57
AMFYPC42 42 6 & 8 20 9 68 84
AMFYPC48 48 8 24 11.5 81 130
AMFYPC60 60 8 30 15 113 254
AMFYPC75 75 10 34 15 164 550

Male Thread Neodymium Pot Magnet - Diameter 48mm x 24mm (AMFYPC48)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A
