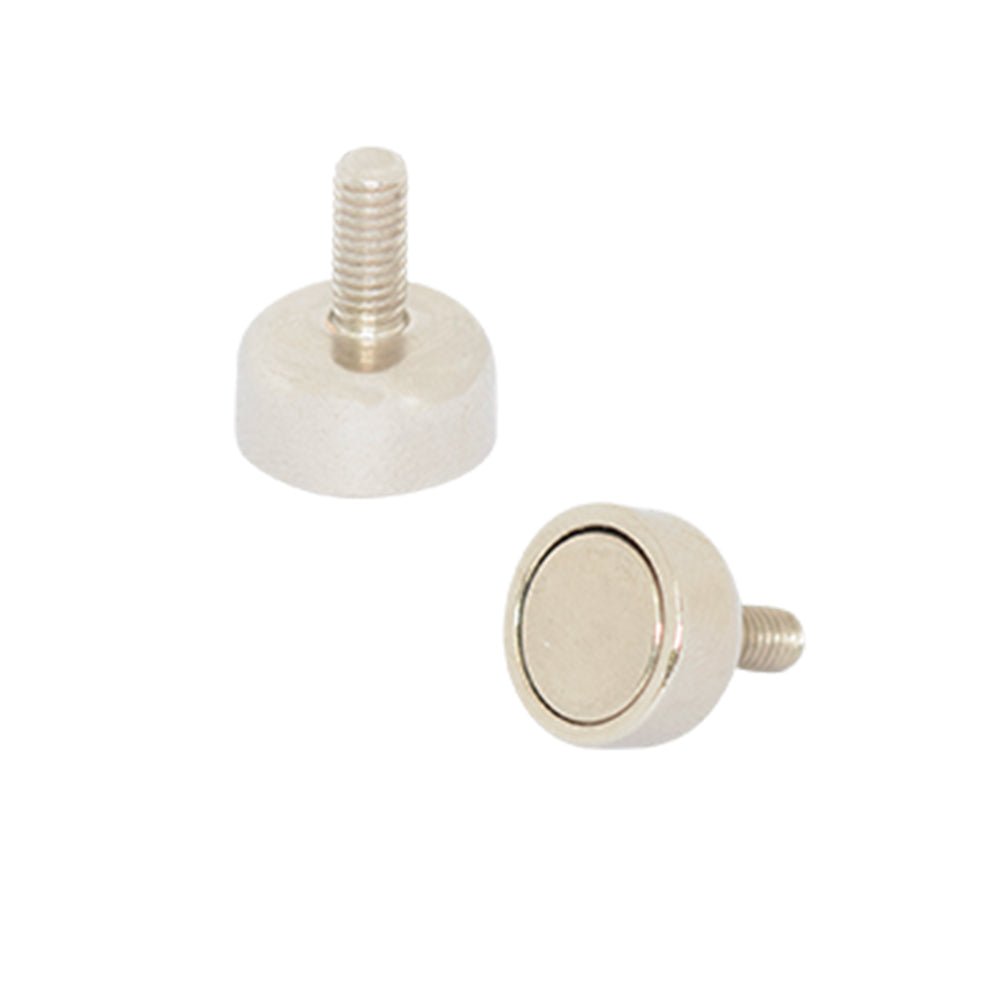

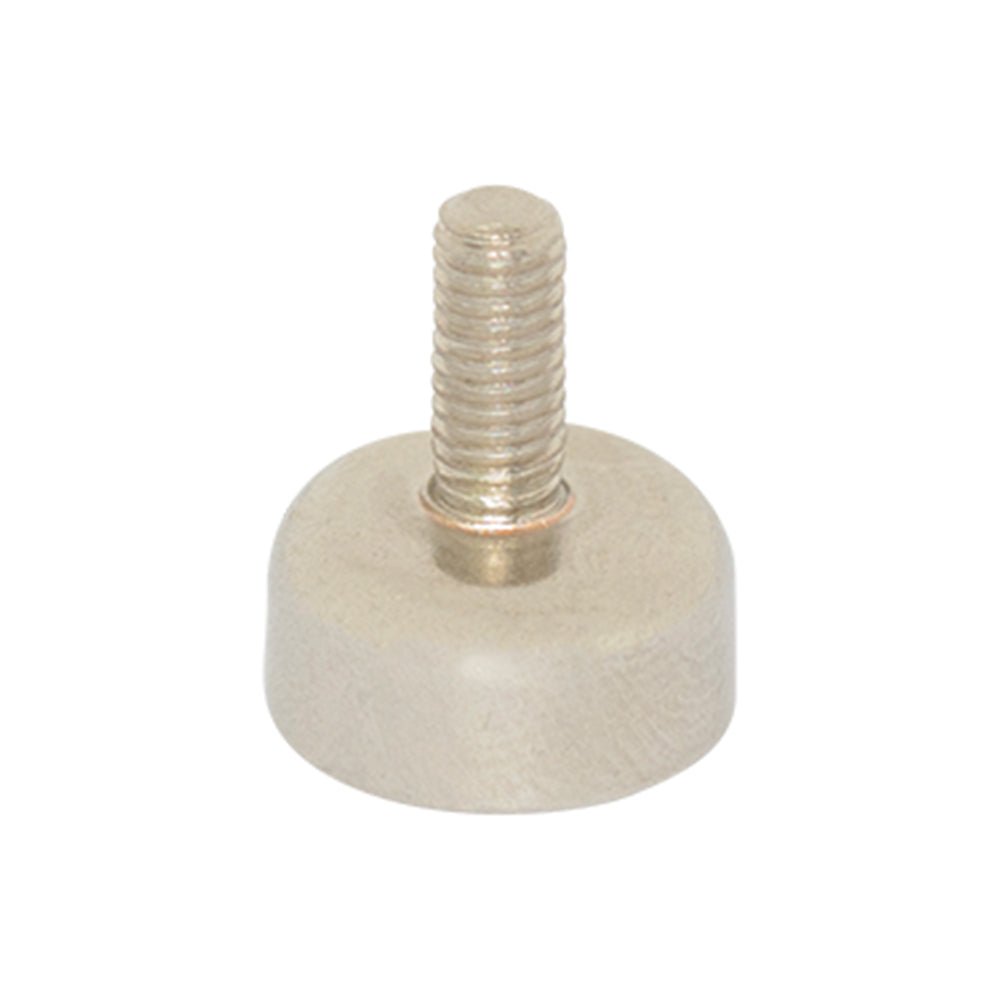

Male Thread Neodymium Pot Magnet - Diameter 10mm x 12mm

Product code: AMFYPC10

$1.96for 1 to 9 items
$1.64buy 10 to 99 itemsand save 16%
$1.42buy 100+ itemsand save 27%

Prices are GST Incl.

Volume pricing available on request

Male Thread Neodymium Pot Magnet - Diameter 10mm x 12mm

Rated 5.0 out of 5
Based on 2 reviews
Product Code AMFYPC10
Pull Force* 2.2 kg
Weight 3 gm
Style Rare Earth male thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 5mm

Magnetic Product Description:

This rare earth male threaded pot magnet has a diameter of 10mm, a total height of 12mm and a magnet housing thickness of 5mm. It has a M3 thread with an external boss of 7mm. This male threaded magnet has a pull force of 2.2kg and a weight of 3 grams. It is identified by the AMF magnet part number AMFYPC10.

Uses for our Rare Earth male thread pot magnets:

These Neodymium Holding Pot magnets are high strength magnets in a mild steel capping for extra protection against damage. As a result of the protective cover on these Male Thread pot magnets, the magnetic field is more pronounced on the base, This makes them ideal for attaching non-ferrous material to metal surfaces. A nut and washer will secure the magnet in position and makes attaching it to thin timber or plastic material simple.

ModelNo. M H h Holding force (kg) Weight (g)
AMFYPC10 10 3 12 5 2.2 3.5
AMFYPC12 12 3 13 5 3.2 5
AMFYPC16 16 4 13 5 5.5 7.5
AMFYPC20 20 4 15 7 9 16
AMFYPC25 25 5 17 8 22 30
AMFYPC32 32 6 18 8 34 45
AMFYPC36 36 6 18 8 41 57
AMFYPC42 42 6 & 8 20 9 68 84
AMFYPC48 48 8 24 11.5 81 130
AMFYPC60 60 8 30 15 113 254
AMFYPC75 75 10 34 15 164 550

Male Thread Neodymium Pot Magnet - Diameter 10mm x 12mm (AMFYPC10)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
