Neodymium Pot Magnet with Round Hole - 75mm x 18mm

Product code: AMFYPB75

$189.24for 1 to 9 items
$122.70buy 10 to 99 itemsand save 35%
$102.55buy 100+ itemsand save 46%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Round Hole - 75mm x 18mm

Product Code AMFYPB75
Pull Force* 155 kg
Weight 471 gm
Style Rare earth round hole pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 18mm

Magnetic Product Description:

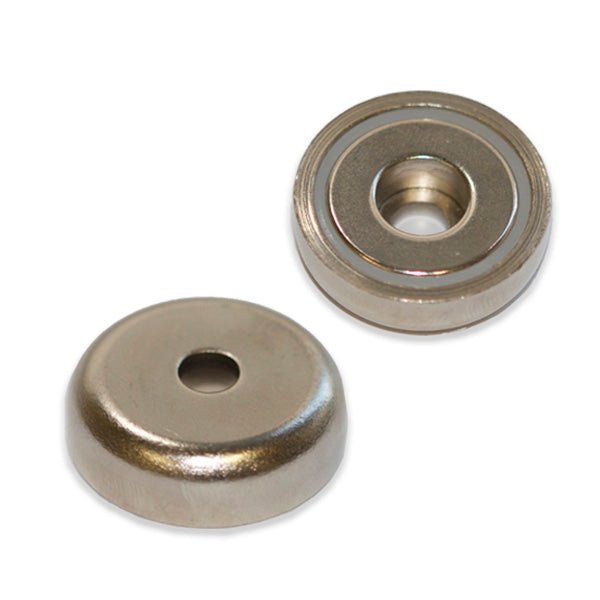

This rare earth pot magnet has an outside diameter of 75mm and an inside diameter of 10.5mm with an internal flange hole of 18mm. This round hole pot magnet has a thickness of 18mm, a pull force of 155kg and a weight of 471 grams. It is identified by the AMF magnet part number AMFYPB75.

Uses for our Rare Earth round hole pot magnets:

Our Rare Earth Holding Pot magnets with Round Holes are commonly used where a bolt is the preferred method for securing and positioning the magnet. Neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap that gives extra protection against chipping or cracking. Due to the protective cover on these pot magnets, the magnetic field is projected downward to the base, so both North and South poles have some presence at the base, or holding surface. They provide an easy non-invasive solution for attaching and suspending metal objects to just about any surface.

ModelNo. D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPB16 16 3.5 6.5 5 4 6
AMFYPB20 20 4.5 8 7 6 12
AMFYPB25 25 5.5 9 8 14 23
AMFYPB32 32 5.5 9 8 23 36
AMFYPB36 36 6.5 11 7.9 29 50
AMFYPB42 42 6.5 11 9 32 73
AMFYPB48 48 8.5 15 11.5 63 114
AMFYPB60 60 8.5 15 15 95 240
AMFYPB75 75 10.5 18 18 155 471

Neodymium Pot Magnet with Round Hole - 75mm x 18mm (AMFYPB75)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
