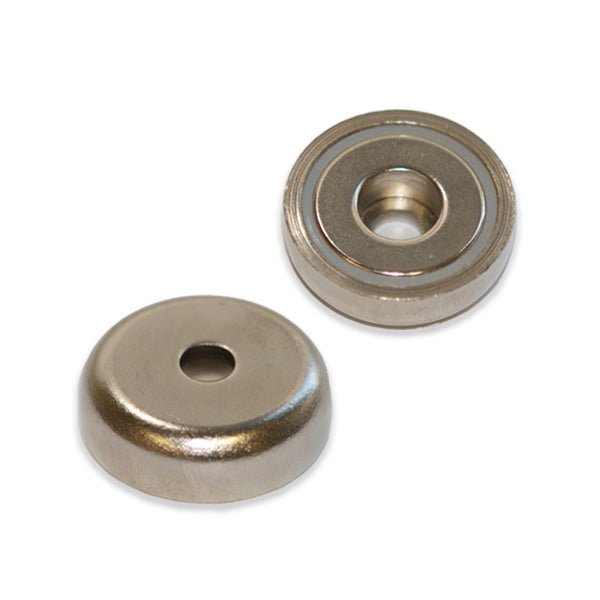

Neodymium Pot Magnet with Round Hole - 60mm x 15mm

Product code: AMFYPB60

$126.16for 1 to 9 items
$95.05buy 10 to 99 itemsand save 25%
$88.50buy 100+ itemsand save 30%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Round Hole - 60mm x 15mm

Rated 5.0 out of 5
Based on 1 review
Product Code AMFYPB60
Pull Force* 95 kg
Weight 240 gm
Style Rare earth round hole pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 15mm

Magnetic Product Description:

This rare earth pot magnet has an outside diameter of 60mm and an inside diameter of 8.5mm with an internal flange hole of 15mm. This round hole pot magnet has a thickness of 15mm, a pull force of 95kg and a weight of 240 grams. It is identified by the AMF magnet part number AMFYPB60.

Uses for our Rare Earth round hole pot magnets:

Our rare earth holding pot magnets with Round Holes are often used when a bolt and nut is the most appropriate way to position the magnet. Neodymium Holding Pot magnets are high strength rare earth magnets with a mild steel cap on the upper surface for extra protection against chipping or cracking. Due to the protective cover on these pot magnets, magnetic flow is diverted to the base so they are a  mostly single-sided magnet. They provide an easy solution to the problem of attaching to and suspending objects  from non-metallic surfaces.

ModelNo. D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPB16 16 3.5 6.5 5 4 6
AMFYPB20 20 4.5 8 7 6 12
AMFYPB25 25 5.5 9 8 14 23
AMFYPB32 32 5.5 9 8 23 36
AMFYPB36 36 6.5 11 7.9 29 50
AMFYPB42 42 6.5 11 9 32 73
AMFYPB48 48 8.5 15 11.5 63 114
AMFYPB60 60 8.5 15 15 95 240
AMFYPB75 75 10.5 18 18 155 471

Neodymium Pot Magnet with Round Hole - 60mm x 15mm (AMFYPB60)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Dave
I recommend this product
Rated 5 out of 5
Review posted

Strong magnet

Just as advertised, short delivery time, well packaged. Works fine.

Thanks Guys!

Loading...
Was this helpful?
