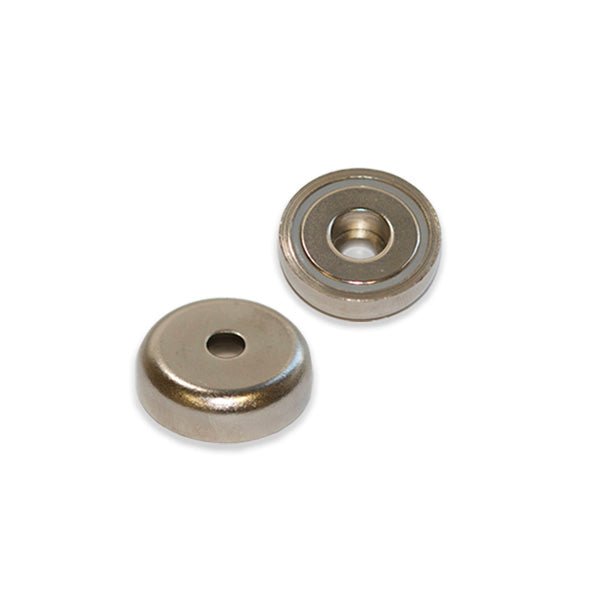

Neodymium Pot - Round Hole 16mm x 5mm

Product code: AMFYPB16

$2.30for 1 to 9 items
$1.65buy 10 to 99 itemsand save 28%
$1.23buy 100+ itemsand save 46%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot - Round Hole 16mm x 5mm

Product Code AMFYPB16
Pull Force* 4 kg
Weight 6 gm
Style Rare earth round hole pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 5mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This rare earth pot magnet has an outside diameter of 16mm and an inside diameter of 3.5mm with an internal flange hole of 6.5mm. This round hole pot magnet has a thickness of 5mm, a pull force of 4kg and a weight of 6 grams. It is identified by the AMF magnet part number AMFYPB16.

Uses for our rare earth round hole pot magnets:

Neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap for extra protection against chipping and cracking. Because of the protective cover on these pot magnets, they are a single sided magnet.







ModelNo. D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPB16 16 3.5 6.5 5 4 6
AMFYPB20 20 4.5 8 7 6 12
AMFYPB25 25 5.5 9 8 14 23
AMFYPB32 32 5.5 9 8 23 36
AMFYPB36 36 6.5 11 7.9 29 50
AMFYPB42 42 6.5 11 9 32 73
AMFYPB48 48 8.5 15 11.5 63 114
AMFYPB60 60 8.5 15 15 95 240
AMFYPB75 75 10.5 18 18 155 471

Neodymium Pot - Round Hole 16mm x 5mm (AMFYPB16)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A
