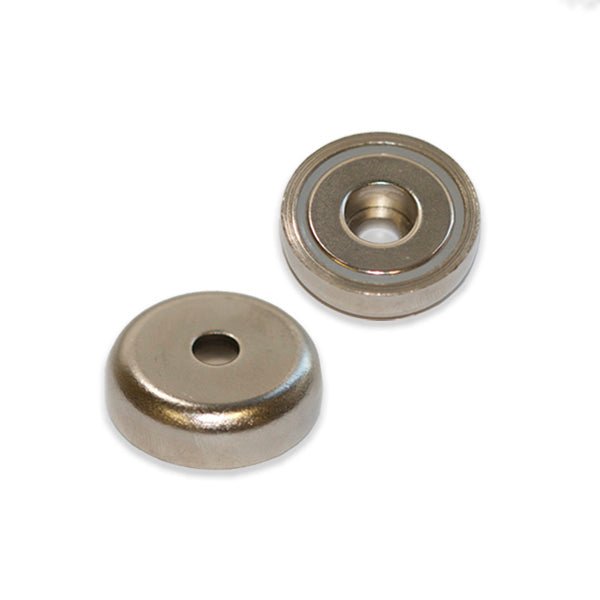

Neodymium Pot Magnet with Round Hole - 36mm x 7.9mm

Product code: AMFYPB36

$20.16for 1 to 9 items
$14.71buy 10 to 99 itemsand save 27%
$13.16buy 100+ itemsand save 35%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Round Hole - 36mm x 7.9mm

Product Code AMFYPB36
Pull Force* 29 kg
Weight 50 gm
Style Rare earth round hole pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the thickness
Dimensions Thickness:7.9 mm

Magnetic Product Description:

This rare earth pot magnet has an outside diameter of 36mm and an inside diameter of 6.5mm with an internal flange hole of 11mm. This round hole pot magnet has a thickness of 7.9mm, a pull force of 29kg and a weight of 50 grams. It is identified by the AMF magnet part number AMFYPB36.

Uses for our Rare Earth round hole pot magnets:

Neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap for extra protection. With a protective cover on these pot magnets, they are a single sided magnet with a range of uses.

Please allow tolerances of up to 2.5mm in thickness for this product. Contact our office for critical dimensions.

ModelNo. D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPB16 16 3.5 6.5 5 4 6
AMFYPB20 20 4.5 8 7 6 12
AMFYPB25 25 5.5 9 8 14 23
AMFYPB32 32 5.5 9 8 23 36
AMFYPB36 36 6.5 11 7.9 29 50
AMFYPB42 42 6.5 11 9 32 73
AMFYPB48 48 8.5 15 11.5 63 114
AMFYPB60 60 8.5 15 15 95 240
AMFYPB75 75 10.5 18 18 155 471

Neodymium Pot Magnet with Round Hole - 36mm x 7.9mm (AMFYPB36)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
