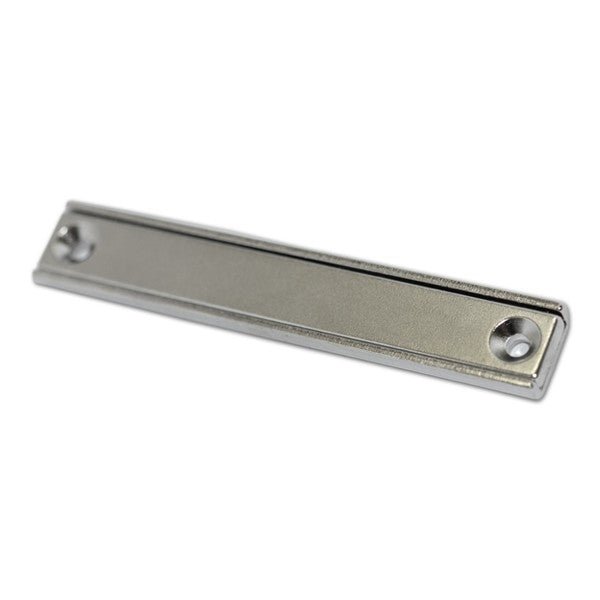

Neodymium Rectangular Pot Magnet - Countersunk 80mm x 13.5mm x 5mm

Product code: AMFYPSNi80

$34.70for 1 to 9 items
$28.43buy 10 to 99 itemsand save 18%
$25.28buy 100+ itemsand save 27%

Prices are GST Incl.

Volume pricing available on request

Neodymium Rectangular Pot Magnet - Countersunk 80mm x 13.5mm x 5mm

Product Code AMFYPSNi80
Pull Force* 33 kg
Weight 37.8 gm
Style Rare Earth Countersunk Rectangular Pot Magnet
Coating Nickel (NiCuNi)
Dimensions Outside Diameter:6.5mm, Inside Diameter:3.3mm, Width:13.5mm, Height:5mm, Length:80mm

Magnetic Product Description:

This rectangular pot magnet has a length of 80mm, a width of 13.5mm, a height of 5mm, a diameter (1) of 3.3mm and diameter (2) of 6.5mm. The length between the centre of each countersunk hole is 70mm. This magnet has a weight of 37.8g and a pull force of 33kg. It is identified by AMF Product Code AMFYPSNi80.

Uses for our Rare Earth Rectangular Countersunk Pot Magnets:

This rectangular pot magnet is a neodymium magnet encased inside a chrome plated steel channel. The steel channel also protects the magnet from being damaged during day to day use. This magnet measures 80mm in length, 13.5mm wide, and 5mm in height with two countersunk hole which has a diameter of 6.5-3.3mm. Both versatile and practical, these rectangular pot magnets have a countersunk hole on their north pole and hold very well against steel surfaces. Perfect for mounting, home improvement, DIY projects such as a tool holder. A popular use for these magnets is as cabinet door or shower door catchers.

Product Code L L1 W H D1 D Weight Pull Force
AMFYPSNI10 10mm 5mm 13.5mm 5mm 3.3mm 6.5mm 4.5g 4kg
AMFYPSNI20 20mm 10mm 13.5mm 5mm 3.3mm 6.5mm 9.2g 8kg
AMFYPSNI40 40mm 30mm 13.5mm 5mm 3.3mm 6.5mm 18.4g 17kg
AMFYPSNI60 60mm 50mm 13.5mm 5mm 3.3mm 6.5mm 27.9g 30kg
AMFYPSNI80 80mm 70mm 13.5mm 5mm 3.3mm 6.5mm 37.8g 33kg

Neodymium Rectangular Pot Magnet - Countersunk 80mm x 13.5mm x 5mm (AMFYPSNi80)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
