Neodymium Rectangular Pot Magnet - Countersunk 60mm x 13.5mm x 5mm
Product code: AMFYPSNi60
$19.32buy 10 to 99 itemsand
save 18%
$17.44buy 100+ itemsand
save 26%
Total
$23.64
Leading Magnet Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*

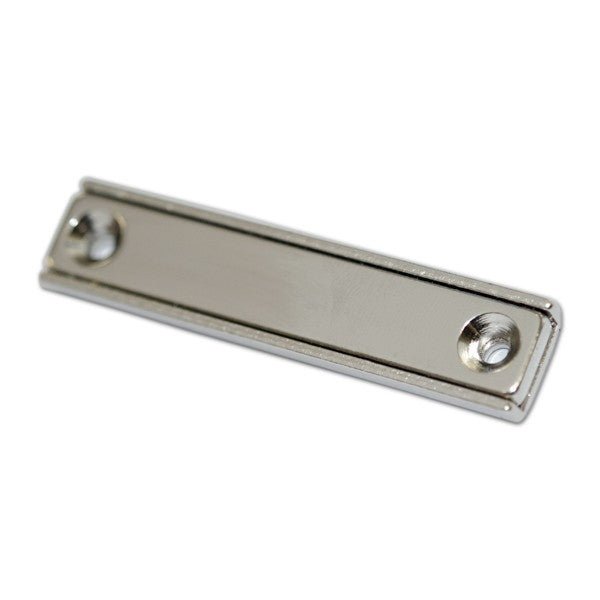

Neodymium Rectangular Pot Magnet - Countersunk 60mm x 13.5mm x 5mm
Rated 5.0 out of 5
Product Code
AMFYPSNi60
Pull Force*
30 kg
Weight
27.9 gm
Style
Rare Earth Countersunk Rectangular Pot Magnet
Coating
Nickel (NiCuNi)
Dimensions
Outside Diameter:6.5mm, Inside Diameter:3.3mm, Width:13.5mm, Height:5mm, Length:60mm
*Measured against up to 10mm mild steel.
Magnetic Product Description:
This rectangular pot magnet has a length of 60mm, a width of 13.5mm, a height of 5mm, a diameter (1) of 3.3mm and diameter (2) of 6.5mm. The length between the centre of each countersunk hole is 50mm. This magnet has a weight of 27.9g and a pull force of 30kg. It is identified by AMF Product Code AMFYPSNi60.
Uses for our Rare Earth Rectangular Countersunk Pot Magnets:
This rectangular pot magnet is a neodymium magnet encased inside a chrome plated steel channel. The steel channel also protects the magnet from being damaged during day to day use. This magnet measures 60mm in length, 13.5mm wide, and 5mm in height with two countersunk hole which has a diameter of 6.5-3.3mm. Both versatile and practical, these rectangular pot magnets have a countersunk hole on their north pole and hold very well against steel surfaces. Perfect for mounting, home improvement, DIY projects such as a tool holder. A popular use for these magnets is as cabinet door or shower door catchers.
| Product Code | L | L1 | W | H | D1 | D2 | Weight | Pull Force |
| AMFYPSNI10 | 10mm | 5mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 4.5g | 4kg |
| AMFYPSNI20 | 20mm | 10mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 9.2g | 8kg |
| AMFYPSNI40 | 40mm | 30mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 18.4g | 17kg |
| AMFYPSNI60 | 60mm | 50mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 27.9g | 30kg |
| AMFYPSNI80 | 80mm | 70mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 37.8g | 33kg |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
