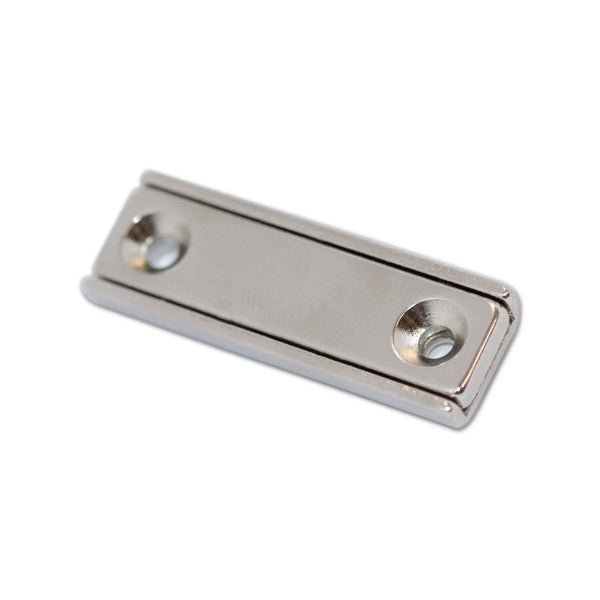

Neodymium Rectangular Pot Magnet - Countersunk 40mm x 13.5mm x 5mm

Product code: AMFYPSNi40

$13.66for 1 to 9 items
$11.80buy 10 to 99 itemsand save 14%
$10.33buy 100+ itemsand save 24%

Prices are GST Incl.

Volume pricing available on request

Neodymium Rectangular Pot Magnet - Countersunk 40mm x 13.5mm x 5mm

Rated 5.0 out of 5
2 Reviews
Product Code AMFYPSNi40
Pull Force* 17 kg
Weight 18.4 gm
Style Rare Earth Countersunk Rectangular Pot Magnet
Coating Nickel (NiCuNi)
Dimensions Outside Diameter:6.5mm, Inside Diameter:3.3mm, Width:13.5mm, Height:5mm, Length:40mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This rectangular pot magnet has a length of 40mm, a width of 13.5mm, a height of 5mm, a diameter (1) of 3.3mm and diameter (2) of 6.5mm. The length between the centre of each countersunk hole is 30mm. This magnet has a weight of 18.4g and a pull force of 17kg. It is identified by AMF Product Code AMFYPSNi40.

Uses for our Rare Earth Rectangular Countersunk Pot Magnets:

This rectangular pot magnet is a neodymium magnet encased inside a chrome plated steel channel. The steel channel also protects the magnet from being damaged during day to day use. This magnet measures 40mm in length, 13.5mm wide, and 5mm in height with two countersunk holes which have a diameter of 6.5-3.3mm. Both versatile and practical, these rectangular pot magnets have a countersunk hole on their north pole and hold very well against steel surfaces. They are ideal for mounting, home improvement products or DIY projects such as a convenient tool holder. Another popular use for these magnets is as cabinet door or shower door catchers.

Product Code L L1 W H D1 D Weight Pull Force
AMFYPSNI10 10mm 5mm 13.5mm 5mm 3.3mm 6.5mm 4.5g 4kg
AMFYPSNI20 20mm 10mm 13.5mm 5mm 3.3mm 6.5mm 9.2g 8kg
AMFYPSNI40 40mm 30mm 13.5mm 5mm 3.3mm 6.5mm 18.4g 17kg
AMFYPSNI60 60mm 50mm 13.5mm 5mm 3.3mm 6.5mm 27.9g 30kg
AMFYPSNI80 80mm 70mm 13.5mm 5mm 3.3mm 6.5mm 37.8g 33kg

Neodymium Rectangular Pot Magnet - Countersunk 40mm x 13.5mm x 5mm (AMFYPSNi40)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A
average rating 5.0 out of 5
Based on 2 reviews
  • 5 Stars
    2 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
2 Reviews
Reviewed by GeoffJ
I recommend this product
Rated 5 out of 5
Review posted

Punches above its weight

I needed a couple of small but powerful magnets for some cupboard doors that I wanted tightly sealed. These were the perfect size and they are powerful for their size - perfect!

Heed the instructions on the sellers website as the neodymium magnets are quite brittle so do not over tighten the screws.

Loading...
Was this helpful?
Reviewed by Sol
I recommend this product
Rated 5 out of 5
Review posted

Custom magnetic cleaning tool

Product is of high quality, excellent pull force for size, exactly as described.

Loading...
Was this helpful?
