Neodymium Pot Magnet with Threaded Hook - 20mm x 37mm

Product code: AMFYPE20

$7.11for 1 to 9 items
$6.22buy 10 to 99 itemsand save 13%
$4.88buy 100+ itemsand save 31%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Threaded Hook - 20mm x 37mm

Rated 5.0 out of 5
Based on 17 reviews
Product Code AMFYPE20
Pull Force* 9 kg
Weight 21 gm
Style Rare earth threaded hook pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 7mm

Magnetic Product Description:

This rare earth threaded hook pot magnet has a pull force of 9kg and a weight of 21 grams. It has a diameter of 20mm, a total height of 37mm and a magnet housing thickness of 7mm. This neodymium pot magnet has an M4 thread with a 7mm hook. It is identified by the AMF magnet part number AMFYPE20.

Uses for our rare earth threaded hook pot magnets:

Our Neodymium Holding Pot magnets with a Threaded Hook can help organise tools and equipment and will attach to any metallic surface. The steel capping on top of the magnet concentrates magnetic force to the base and increases its holding ability. The capping also protects the magnet from damage enabling them to be removed, reused and relocated as required. Use these magnetic hooks to suspend objects on metal racking or shelves and to keep work areas, offices, recreation areas or storage areas tidy and free of trip hazards. The hooks can attach to work trucks, campervans, fishing boats and trailers without the need for screws or glue and can be attached or removed instantly.



ModelNo. M H h TH Holding force(kg) Weight (g)
AMFYPE16 16 4 13 5 37 5.5 11
AMFYPE20 20 4 15 7 37 9 21
AMFYPE25 25 5 17 8 42 22 37
AMFYPE32 32 6 18 8 47  34 56
AMFYPE36 36 6 18 8 47 41 68
AMFYPE42 42 6 20 9 47 68 97
AMFYPE48 48 8 24 11.5 70 81 154
AMFYPE60 60 8 30 15 70 113 282
AMFYPE75 75 10 34 18 98 164 560

Neodymium Pot Magnet with Threaded Hook - 20mm x 37mm (AMFYPE20)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 17 reviews
  • 5 Stars
    17 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Quality
Rated 5 out of 5
Ease of Use
Rated 5 out of 5
Value
Rated 5 out of 5
Strength
Rated 5 out of 5

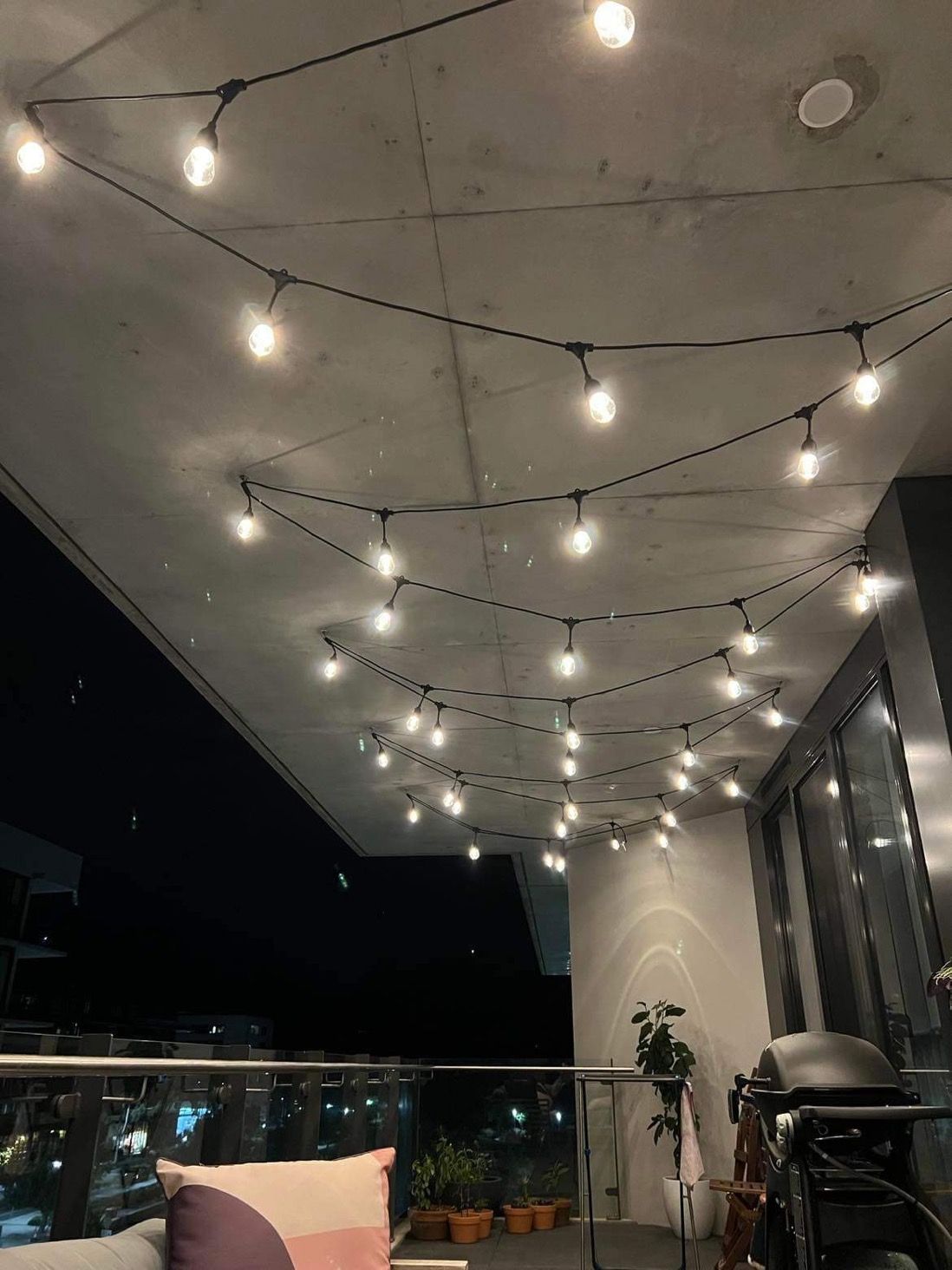

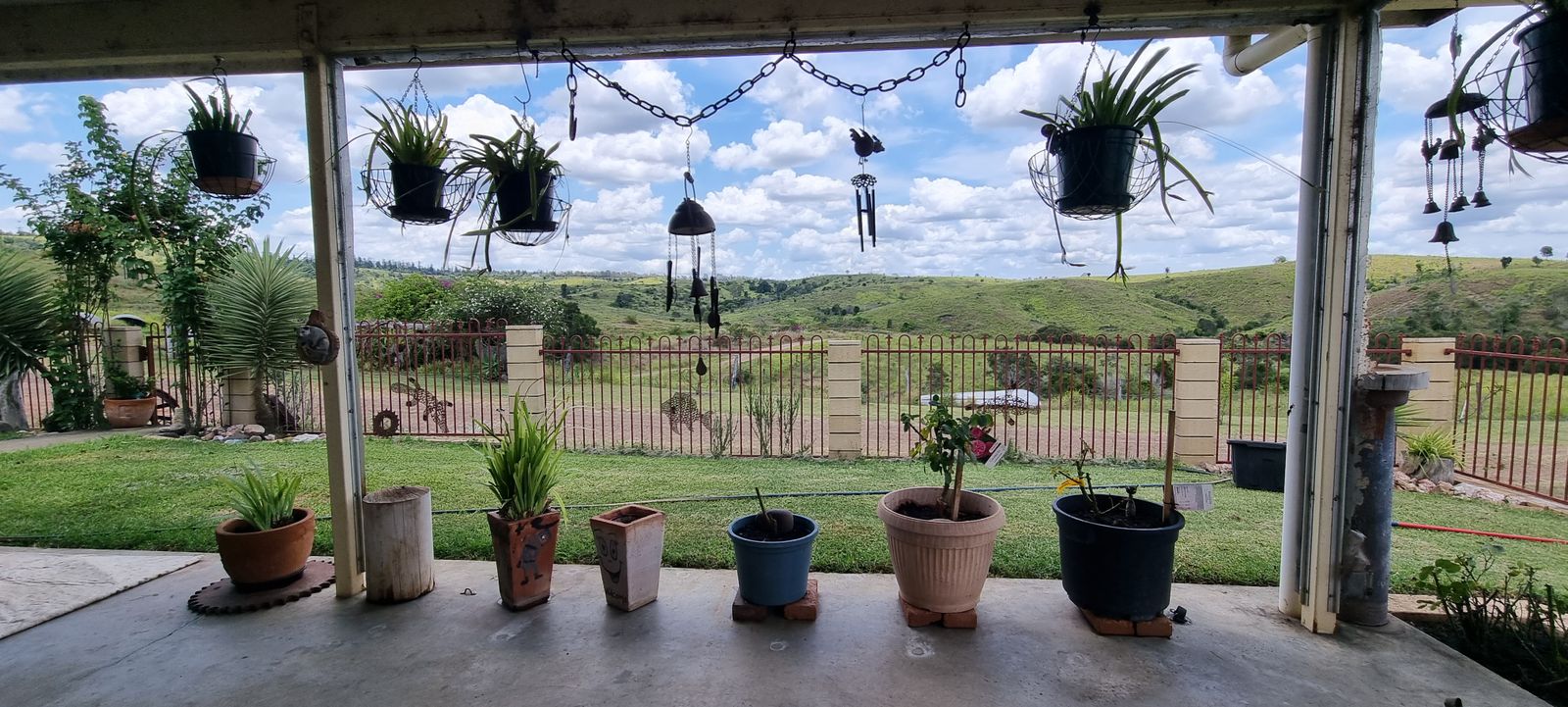

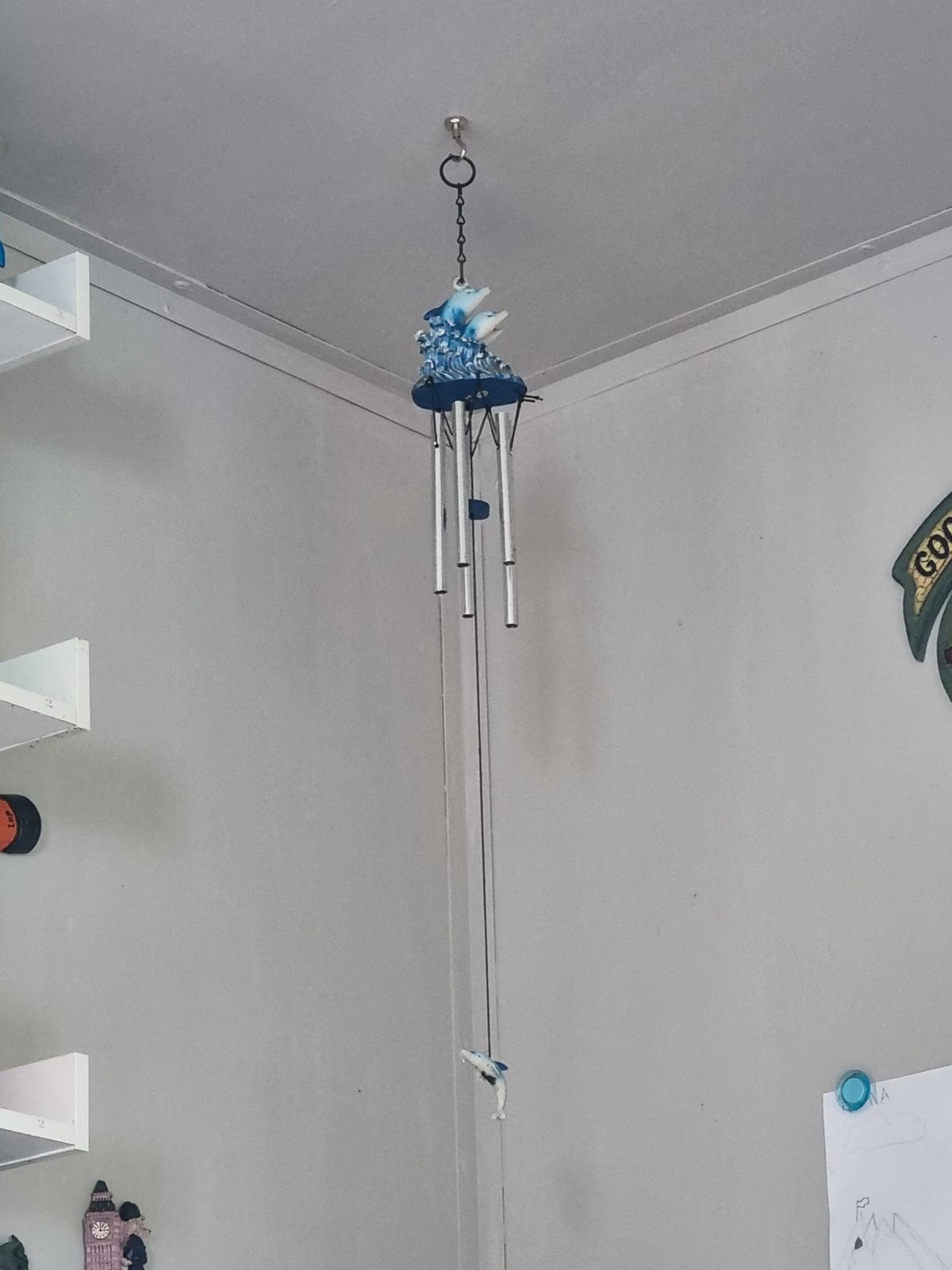

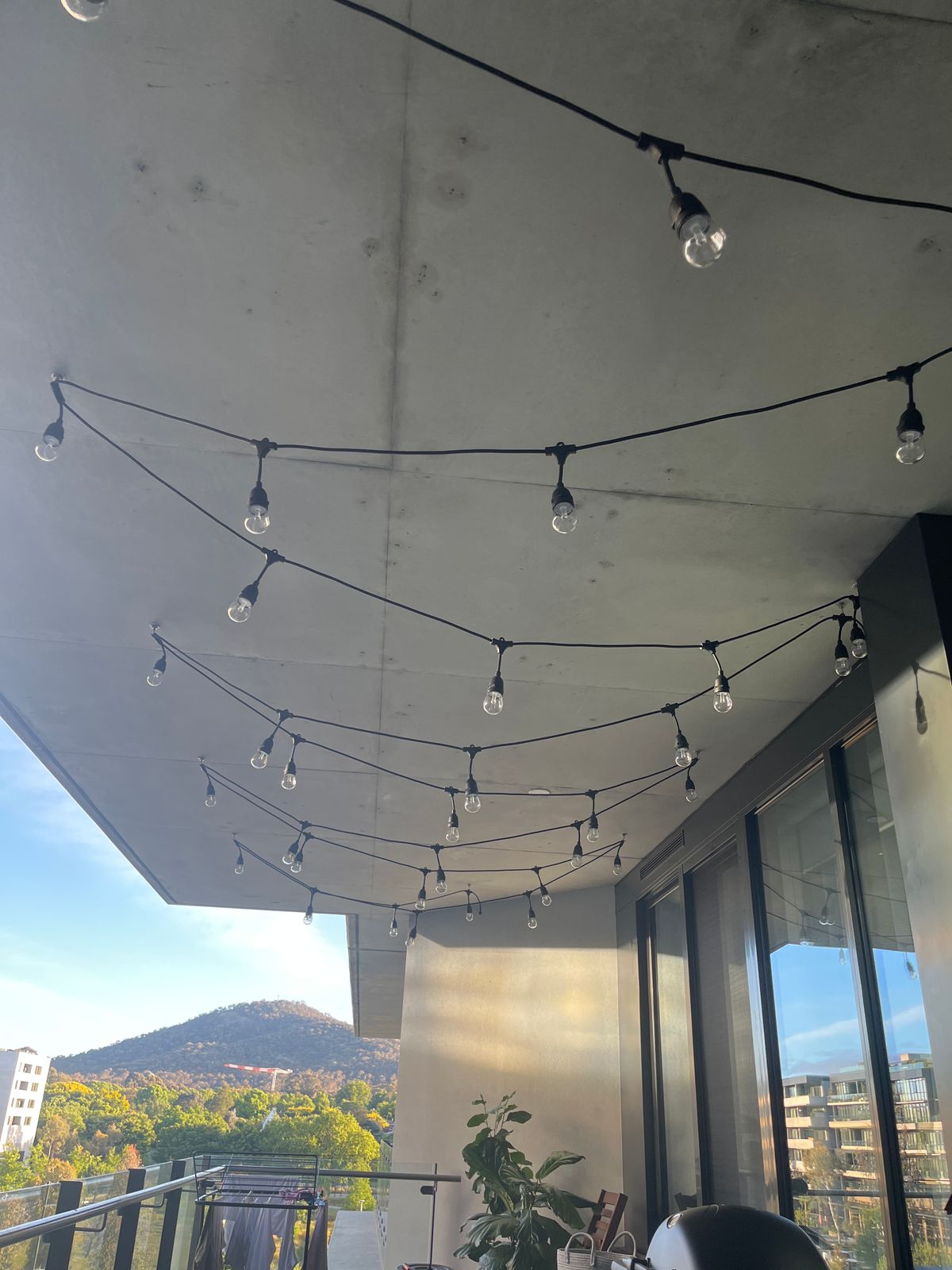

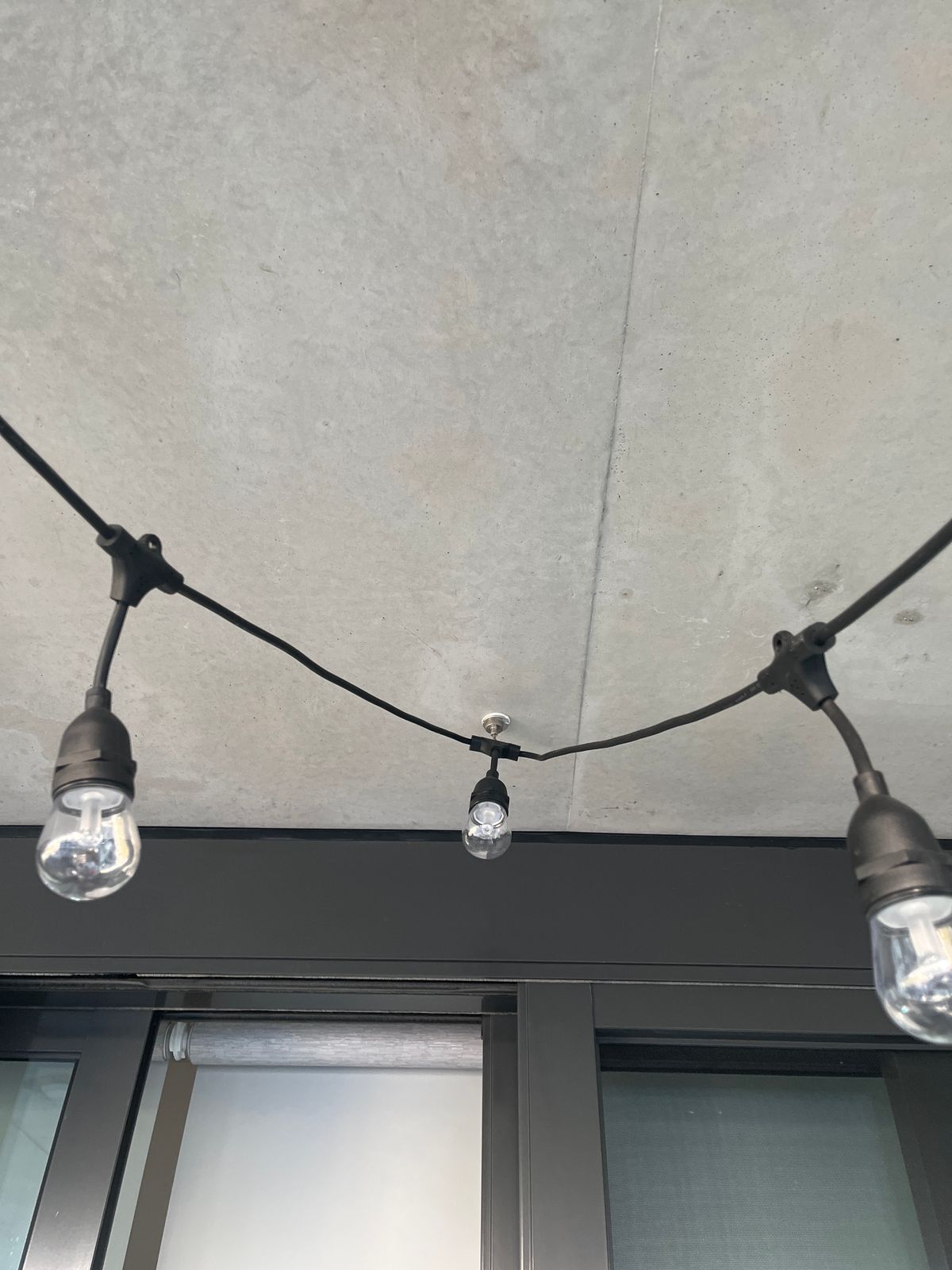

Customer photos and videos
