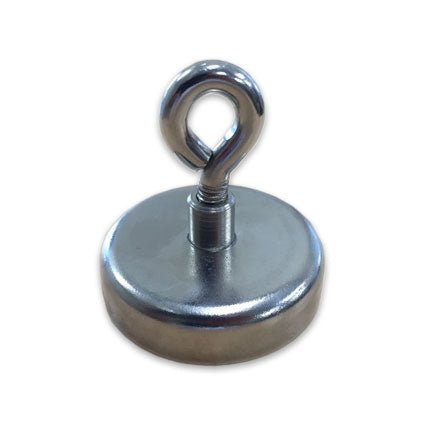

Neodymium Threaded Eyelet Magnet - 20mm x 4mm

Product code: AMFYPF20

$5.71for 1 to 9 items
$4.12buy 10 to 99 itemsand save 28%
$3.08buy 100+ itemsand save 46%

Prices are GST Incl.

Volume pricing available on request

Neodymium Threaded Eyelet Magnet - 20mm x 4mm

Rated 5.0 out of 5
5 Reviews
Product Code AMFYPF20
Pull Force* 10 kg
Weight 21 gm
Style Rare earth threaded eyelet pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 7mm
Dimensions Diameter:20mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This Rare Earth Eyelet Holding Pot Magnet has a pull force of 10kg and a weight of 21 grams. It has a diameter of 20mm, a total height of 31mm and a magnet housing thickness of 7mm. This Neodymium pot magnet has an M4 thread with a 4mm eyelet. It is identified by the AMF Magnets part number AMFYPF20.

Uses for our Rare Earth Threaded Eyelet Pot Magnets:

These Neodymium Pots have a steel casing that constricts magnetic flow, pushing it away from the top to create increased holding power at the base and are also fitted with a removable Threaded Eyelet. Holding magnets have a range of applications around Construction sites, Workshops, Minesites and Rural holdings where they can be used to secure important cables or wiring on a temporary or more permanent basis. They can attach to steel fencing, framework, sheds or outbuildings and used to hang curtains, protective drapes or weather protection screens without screws, nuts, bolts, tools or mains electrical power. They do this in a non-penetrative manner that eliminates the surface damage associated with other attachment and fastening systems. Anything that needs to be isolated from dirty, muddy or watery conditions can be suspended safely with these eyelet equipped magnetic holders.



ModelNo. d2 M H h Holding force(kg) Weight (g)
AMFYPF16 16 6 4 37 13 5.5 11
AMFYPF20 20 6 4 37 15 10 21
AMFYPF25 25 6 5 42 17 22 37
AMFYPF32 32 10 6 47 18 34 56
AMFYPF36 36 10 6 47 18 41 68
AMFYPF42 42 10 6 47 20 68 97
AMFYPF48 48 12 8 70 24 81 97
AMFYPF60 60 12 8 70 30 113 282
AMFYPF75 75 12 10 98 34 164 560

Neodymium Threaded Eyelet Magnet - 20mm x 4mm (AMFYPF20)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A
average rating 5.0 out of 5
Based on 5 reviews
  • 5 Stars
    5 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
5 Reviews
Reviewed by Pauly d.
I recommend this product
Rated 5 out of 5
Review posted

20mmx4mm magnet

Very strong for their size

Loading...
Was this helpful?
Reviewed by Scooter
I recommend this product
Rated 5 out of 5
Review posted

Awesome products. They are super strong and very good quality

Awesome products. They are super strong and very good quality

Loading...
Was this helpful?
Reviewed by Ali
I recommend this product
Rated 5 out of 5
Review posted

The product is good and it seems to meet specifications but...

It didn't work the way I was expecting, as the pull force always varies a lot depending on what surface one is trying to attach them to.

I contacted the customer service and it was really good. But I would suggest them to add some sort of calculator to help customers identify what type of magnet to buy in relation to the surface they intend to attach it to.

Loading...
Was this helpful?
Reviewed by Cameron f.
I recommend this product
Rated 5 out of 5
Review posted

Strong

Real strong gear. Working great on my projects

Loading...
Was this helpful?
Reviewed by Suzanne
I recommend this product
Rated 5 out of 5
Review posted

Great service.

Great excellent Service.

Loading...
Was this helpful?
