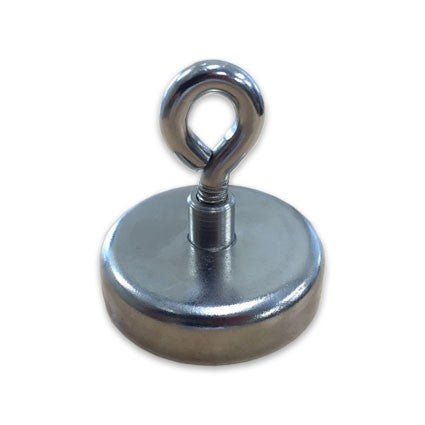

Neodymium Pot Magnet with Threaded Eyelet - 48mm x 8mm

Product code: AMFYPF48

$32.35for 1 to 9 items
$27.52buy 10 to 99 itemsand save 14%
$19.32buy 100+ itemsand save 40%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Threaded Eyelet - 48mm x 8mm

Rated 5.0 out of 5
3 Reviews
Product Code AMFYPF48
Pull Force* 81kg
Weight 200 gm
Style Rare earth threaded eyelet pot magnet
Coating Nickel (NiCuNi)

Magnetic Product Description:

This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 81 kilograms and a weight of 200 grams. It has a diameter of 48mm, a total height of 65mm and a magnet housing thickness of 25mm. This Neodymium Pot Magnet has an M8 thread with eyelet. It is identified by the AMF magnet part number AMFYPF48.

Uses for our Rare Earth Threaded Eyelet Pot Magnets:

These Neodymium Pots have a steel casing that constricts magnetic flow away from the top to create increased holding power at the base and are also fitted with a removable Threaded Eyelet. Holding magnets have a range of applications around Construction sites, Workshops, Mining sites and Rural holdings where they can be used to secure important cables or wiring on a temporary or more permanent basis. They can attach to steel fencing, framework, sheds or outbuildings and used to hang curtains, protective drapes or weather protection screens without screws, nuts, bolts, tools or electrical power. They do this in a non-penetrative manner that eliminates the surface damage associated with other attachment methods. Anything that needs to be isolated from dirty, muddy or watery conditions can be suspended safely with these eyelet equipped magnetic holders.



ModelNo. d2 M H h Holding force(kg) Weight (g)
AMFYPF16 16 6 4 37 13 5.5 11
AMFYPF20 20 6 4 37 15 9
21
AMFYPF25 25 6 5 42 17 22 37
AMFYPF32 32 10 6 47 18 34 56
AMFYPF36 36 10 6 47 18 41 68
AMFYPF42 42 10 6 47 20 68 97
AMFYPF48 48 12 8 65 25 81 200
AMFYPF60 60 12 8 70 30 113 282
AMFYPF75 75 12 10 98 34 164 560

Neodymium Pot Magnet with Threaded Eyelet - 48mm x 8mm (AMFYPF48)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A
average rating 5.0 out of 5
Based on 3 reviews
  • 5 Stars
    3 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
3 Reviews
Reviewed by Dave S.
I recommend this product
Rated 5 out of 5
Review posted

Small size high power good price

The 48 mm Neodymium magnet I purchased from AMF exceeded my expectations showing surprisingly high power from such a small unit. Happy too with the price and quick response to the order with 4 day postal delivery.

Loading...
Was this helpful?
Reviewed by charlie
I recommend this product
Rated 5 out of 5
Review posted

Fast Shipping, great price and a solid piece of kit

Great local service from a kiwi company. Everything was exactly as expected and I'm a happy customer

Loading...
Was this helpful?
Reviewed by Pete W.
I recommend this product
Rated 5 out of 5
Review posted

Perfect for dragging around the garage floor

I tied paracord to the screw in eyelet, which I loctited in place and it was perfect for dragging in the confined spaces between wooden shelving recovering dropped spring and BBs

Loading...
Was this helpful?
