Neodymium Pot Magnet with Threaded Eyelet - 60mm x 8mm
Product code: AMFYPF60
Leading Magnet Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Neodymium Pot Magnet with Threaded Eyelet - 60mm x 8mm
Magnetic Product Description:

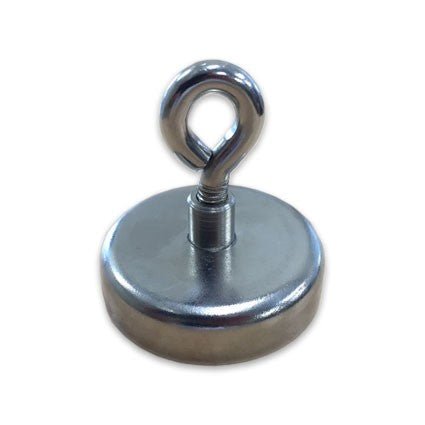

This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 113kg and a weight of 282 grams. It has a diameter of 60mm, a total height of 23mm and a magnet housing thickness of 15mm. This neodymium pot magnet has an M8 thread with an 8mm eyelet. It is identified by the AMF magnet part number AMFYPF60.
Uses for our Rare Earth Threaded Eyelet Pot Magnets:
These Neodymium Pots have a steel casing that constricts magnetic flow away from the top to create increased holding power at the base and are also fitted with a removable Threaded Eyelet. Holding magnets have a range of applications around Construction sites, Workshops, Minesites and Rural holdings where they can be used to secure important cables or wiring on a temporary or more permanent basis. They can attach to steel fencing, framework, sheds or outbuildings and used to hang curtains, protective drapes or weather protection screens without screws, nuts, bolts, tools or electrical power. They do this in a non-penetrative manner that eliminates the surface damage associated with other attachment methods. Anything that needs to be isolated from dirty, muddy or watery conditions can be suspended safely with these eyelet equipped magnetic holders.
| ModelNo. | DØ | d2 | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPF16 | 16 | 6 | 4 | 37 | 13 | 5.5 | 11 |
| AMFYPF20 | 20 | 6 | 4 | 37 | 15 | 9 |
21 |
| AMFYPF25 | 25 | 6 | 5 | 42 | 17 | 22 | 37 |
| AMFYPF32 | 32 | 10 | 6 | 47 | 18 | 34 | 56 |
| AMFYPF36 | 36 | 10 | 6 | 47 | 18 | 41 | 68 |
| AMFYPF42 | 42 | 10 | 6 | 47 | 20 | 68 | 97 |
| AMFYPF48 | 48 | 12 | 8 | 70 | 24 | 81 | 97 |
| AMFYPF60 | 60 | 12 | 8 | 70 | 30 | 113 | 282 |
| AMFYPF75 | 75 | 12 | 10 | 98 | 34 | 164 | 560 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
