Neodymium Countersunk Pot Magnets - 16mm x 5mm | North South Pair

Product code: AMFYPA16N/S

Neodymium Pot - Countersunk 16mm x 5mm | North South Pair
$7.79for 1 to 9 items
$6.29buy 10 to 99 itemsand save 19%
$5.18buy 100+ itemsand save 34%

Prices are GST Incl.

Volume pricing available on request

Neodymium Countersunk Pot Magnets - 16mm x 5mm | North South Pair

Rated 5.0 out of 5
Based on 2 reviews
Product Code AMFYPA16N/S
Pull Force* 5 kg
Weight 15 gm
Style Rare earth countersunk pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation North South

Magnetic Product Description:

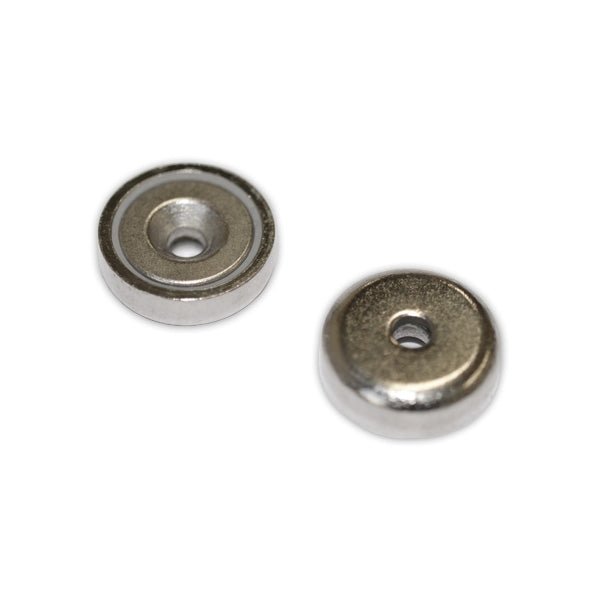

This pair of Rare Earth Pot Magnet have a diameter of 16mm, a countersunk hole diameter of 3.5mm to 6.5mm and a thickness of 5mm. Each pot magnet a pull force of 5kg and a weight of 7 grams, one has a south facing pole and the other has a north facing pole. The steel cap redirects the magnetic flux of one of the magnetic poles to the other side of the magnet, creating a significantly increased holding capacity. It is identified by AMF Magnet part number AMFYPA16NS.

Uses for our rare earth countersunk pot magnets:

These extremely versatile and practical Matched Pair Neodymium Pot Magnets are manufactured with corresponding North and South faces so they attract or pull towards each other. They can be recessed and screwed in place and hence are commonly used as magnetic closure systems for doors, draws and cabinets. Using Paired North/South magnets means a metallic surface is no longer necessary for attraction. These paired North and South neodymium pot magnets are available in a range of diameters and can be used for holding and attracting in workshops or industrial situations, making them a top-selling item.



Product Code
 DØ D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPA16 16 3.5 6.5 5 5 7
AMFYPA20 20 4.5 8.5 7 6 13
AMFYPA25 25 5.5 10.4 8 14 23
AMFYPA32 32 5.5 10.4 8 25 39
AMFYPA36 36 6.5 12 9 29 52
AMFYPA42 42 6.5 12 9 37 76
AMFYPA48 48 8.5 16 11.5 68 120
AMFYPA60 60 8.5 16 15 112 252
AMFYPA75 75 10.5 19 18 162 488

Neodymium Countersunk Pot Magnets - 16mm x 5mm | North South Pair (AMFYPA16N/S)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

Write a Review
average rating 5.0 out of 5
Based on 2 reviews
  • 5 Stars
    2 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
2 Reviews
Reviewed by Chipy
I recommend this product
Rated 5 out of 5
Review posted

Rattling caravan shower door.

I have a shower door in my caravan that folds against a wall when traveling. The door has a latch at the top but the bottom still rattles against the wall while the van is in motion and the rubbing will eventually cause damage. I fixed one half of the 16mm magnet to the 16mm aluminium door style and the other half to the shower wall, where solid fixing was available behind the lining. A little sealant behind the magnets and the job was done. These 5kg pull magnets hold the door in position while traveling and allows the door to be closed without too much effort. A good product delivered promptly.

Loading...
Was this helpful?
Reviewed by Daniel
I recommend this product
Rated 5 out of 5
Review posted

Very happy

Was exactly what I needed for the job
