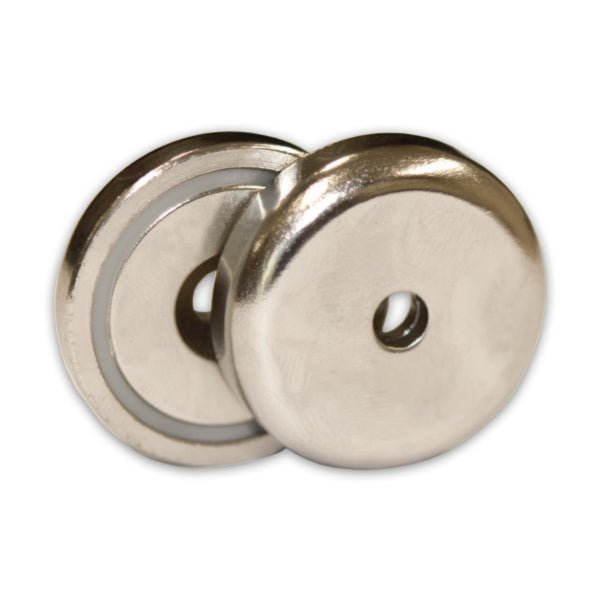

Neodymium Countersunk Pot Magnets - 32mm x 8mm | North South Pair

Product code: AMFYPA32N/S

$23.55for 1 to 9 items
$18.90buy 10 to 99 itemsand save 20%
$15.34buy 100+ itemsand save 35%

Prices are GST Incl.

Volume pricing available on request

Neodymium Countersunk Pot Magnets - 32mm x 8mm | North South Pair

Rated 5.0 out of 5
Based on 1 review
Product Code AMFYPA32N/S
Pull Force* 25 kg
Weight 39 gm
Style Rare earth countersunk mounting magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetized thru the 8mm

Product Description:

These rare earth mounting magnets come in a North and South pair and have a diameter of 32mm, a countersunk hole diameter of 5.5mm and a thickness of 8mm. They have a pull force of 25kg and a weight of 39 grams. They are identified by AMF Magnet part number AMFYPA32.

Uses for our rare earth countersunk pot magnets:

These 32mm Matched Pair Magnets are manufactured with corresponding North and South faces so they attract or pull together. They can be recessed and screwed in place and are commonly used to provide a convenient closure system for doors, draws and cabinets. Using Paired North/South magnets means a metallic surface is no longer required. Because of their enormous versatility simplicity and strength, this pair of North and South neodymium pot magnets can be used for many industrial, retail and domestic purposes. Various diameters are available to provide the exact holding power you require.

Our 32mm rare earth pot magnet is ideal for keeping gates open or closed and attaching non-ferrous objects to any metal surface. This rare earth pot magnet is a high strength magnet in a nickel coated casing that protects against damage and corrosion.

Product Code
D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPA16 16 3.5 6.5 5 5 7
AMFYPA20 20 4.5 8.5 7 6 13
AMFYPA25 25 5.5 10.4 8 14 23
AMFYPA32 32 5.5 10.4 8 25 39
AMFYPA36 36 6.5 12 9 29 52
AMFYPA42 42 6.5 12 9 37 76
AMFYPA48 48 8.5 16 11.5 68 120
AMFYPA60 60 8.5 16 15 112 252
AMFYPA75 75 10.5 19 18 162 488

Neodymium Countersunk Pot Magnets - 32mm x 8mm | North South Pair (AMFYPA32N/S)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Jeremy T.
I recommend this product
Rated 5 out of 5
Review posted

Very strong,well suited as a art work hanger

I bought this to hang a heavy art work,and found the holding strength well suited,and use again.
