Neodymium Countersunk Pot Magnets - 20mm x 7mm | North South Pair

Product code: AMFYPA20N/S

$10.47for 1 to 9 items
$9.34buy 10 to 99 itemsand save 10%
$7.52buy 100+ itemsand save 28%

Prices are GST Incl.

Volume pricing available on request

Neodymium Countersunk Pot Magnets - 20mm x 7mm | North South Pair

Rated 5.0 out of 5
6 Reviews
Product Code AMFYPA20N/S
Pull Force 6 kg

Magnetic Product Description:

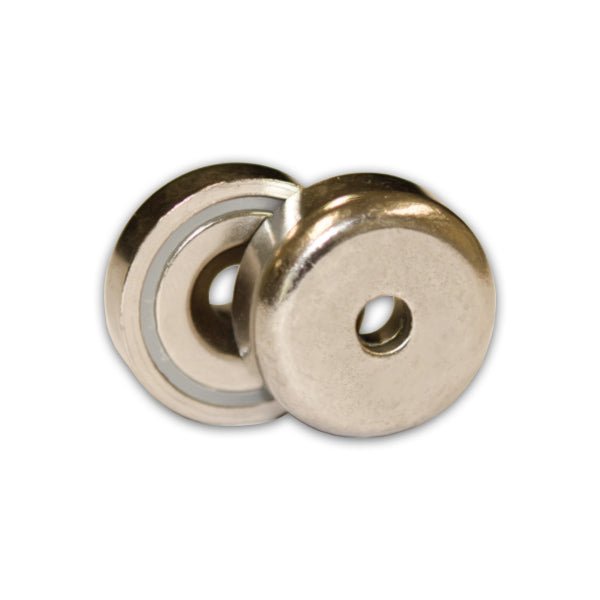

This north and south pair of rare earth countersunk pot magnet have a diameter of 20mm, a countersunk hole diameter of 4.5mm and a thickness of 7mm. It has a pull force of 6kg and a weight of 13 grams. It is identified by the AMF magnet part number AMFYPA20NS.

Uses for our rare earth countersunk pot magnets:

Our 20mm rare earth pot magnet is ideal for keeping gates open or closed and attaching different objects to any surface. This rare earth pot magnet is a high strength magnet in a nickel coated casing.

This strong Neodymium Matched Pair Magnets are manufactured with corresponding North and South faces so they attract or pull together. They can be recessed and screwed in place on opposing surfaces and for this reason are commonly used as closure systems for doors, drawers and cabinets. Using Paired North/South magnets means a metallic surface is no longer required. Due to their ability to create a magnetic bond to each other by having factory oriented opposing poles,  this pair of North and South Neodymium Pot magnets can be used in a range of commercial and industrial situations where a strong magnetic hold is desired but metallic material is absent. Countersinking the attachment screw assures full surface contact and secure hold between these paired items.

ModelNo. D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPA16 16 3.5 6.5 5 5 7
AMFYPA20 20 4.5 8.5 7 6 13
AMFYPA25 25 5.5 10.4 8 14 23
AMFYPA32 32 5.5 10.4 8 25 39
AMFYPA36 36 6.5 12 9 29 52
AMFYPA42 42 6.5 12 9 37 76
AMFYPA48 48 8.5 16 11.5 68 120
AMFYPA60 60 8.5 16 15 112 252
AMFYPA75 75 10.5 19 18 162 488

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
