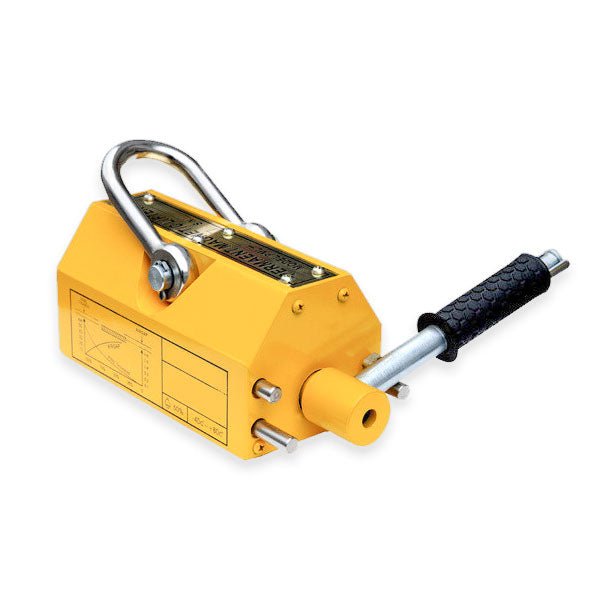

Magnetic Lifter 300kg I 3.5x Safety Factor

Product code: 89131

$1,419.16 $1,095.03 each SAVE $324.13
Total
$1,095.03

Prices are GST Incl.

Volume pricing available on request

Leading Magnet Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Magnetic Lifter 300kg I 3.5x Safety Factor

Product Code 89131
Weight 10000 gm
Style 300kg against 20mm minimum thickness steel
Safety Factor 3.5 : 1 Safety Factor
Dimensions Width:92mm, Height:163mm, Length:200mm

Magnetic Product Description:

This 300kg Powerful Magnetic Lifter has a length of 200mm, a width of 92mm and a 163mm height. It is identified by the AMF magnets part number 89131. Important: this magnetic lifter is rated at 300kg against a minimum of 20mm steel.

All AMF Magnetic Lifters are compliant with  AS 4991-2004 which requires a tear-off force of at least 3 times rated capacity for permanent lifting magnets and at least 2 times rated capacity for battery-powered lifting magnets.

AMF's range of magnetic lifters are all permanent magnetic lifters, therefore they do not require a battery or power source to operate.

Any magnetic lifters that do not meet at least a 3:1 Safety Factor, does not comply with the Australian/NZ Standard for the legal requirements of safe operation.

Magnetic Lifters Operation Safety Instructions and Maintenance Manual can be found here.

AMF Magnetics' ranges of high strength magnetic lifters are produced with super strong Neodymium magnets, with your safety in mind. Magnetic Hold is effected by manually rotating the lever to the ''ON' position while resting on the metal surface of the object to be lifted.Magnetic Lifters are a safe, versatile, cost-effective and convenient way of loading, unloading and moving steel plates, blocks or cylinders while reducing the risk of injury to operators and staff.

Uses for our Powerful Magnetic Lifters:

The preference for using steel instead of timber or masonry in modern construction means lifting and carrying methods have changed. Magnetic lifters help manage the risk and cost of dragging, lifting and carrying steel fabrications of all shapes and sizes. Loved for its price, strength and durability, steel is very heavy and presents handling hazards. Construction, mining, agriculture, shipping and manufacturing sectors are big users of steel. Incorporating Magnetic Lifters in conjunction with traditional types of rigging apparatus reduces the risk of workplace injury when transporting steel or metal objects.

Magnetic lifters hooked up with rigging like chain or electrical powered block and tackle assemblies, truck-mounted hydraulic-powered cranes, demountable construction site cranes, or hoists found in factories and workshops, reduce the inherent danger in moving steel fabrications. Magnetic lifters allow a single person to lift, shift and release with the devices engagement lever, large and heavy objects at a safe distance. Using magnetic lifters removes the need to manually secure a load, reducing the risk of crush injuries.

Ideal for lifting in factories, docks, warehouses, and transportation or engineering workshops, AMF Magnetics Magnetic Lifters are light, ingeniously constructed for ease of application and have a 3:1 safety built into each unit. Another key benefit of the Magnetic Lifters is that they are fitted with the strongest magnetic materials available, Rare Earth Neodymium magnets, which are permanent, providing durable and consistent operation.

Safety Capability Curve



AMF100 AMF300 AMF600 AMF1000 AMF2000 AMF3000 AMF6000
