Magnetic Lifter 100kg I 3.5x Safety Factor

Product code: 89130

$596.46 $383.53 each SAVE $212.93
Total
$383.53

Prices are GST Incl.

Volume pricing available on request

Leading Magnet Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Magnetic Lifter 100kg I 3.5x Safety Factor

Rated 5.0 out of 5
Based on 1 review
Product Code 89130
Weight 3000 gm
Style 100kg against 15mm minimum thickness steel
Safety Factor 3.5 : 1 Safety Factor
Dimensions Width:64mm, Height:120mm, Length:125mm

Magnetic Product Description:

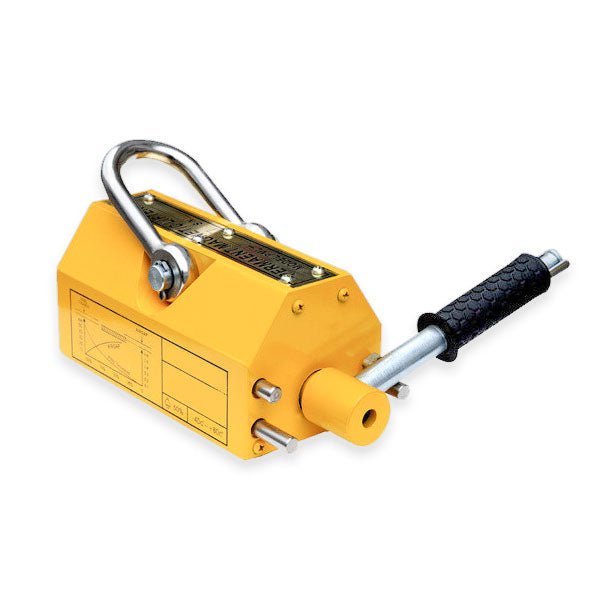

This 100kg Magnetic Lifter has a length of 125mm, a width of 64mm and a 120mm height. It is identified by the AMF magnets part number 89130. Important: this magnetic lifter is rated at 100kg against a minimum of 15mm steel.

Magnetic Lifters Operation Safety Instructions and Maintenance Manual can be found here.

AMF Magnetics' ranges of high strength magnetic lifters are produced with super strong Neodymium magnets, with your safety in mind. Magnetic Hold is effected by manually rotating the lever to the 'ON' position while resting on the metal surface of the object to be lifted. Magnetic Lifters are a safe, versatile, cost-effective and convenient way of loading, unloading and moving steel plates, blocks or cylinders while reducing the risk of injury to operators and staff.

All AMF Magnetic Lifters are compliant with  AS 4991-2004 which requires a tear-off force of at least 3 times rated capacity for permanent lifting magnets and at least 2 times rated capacity for battery-powered lifting magnets.

AMF's range of magnetic lifters are all permanent magnetic lifters, therefore they do not require a battery or power source to operate.

Any magnetic lifters that do not meet at least a 3:1 Safety Factor, does not comply with the Australian/NZ Standard for the legal requirements of safe operation.

Uses for our Magnetic Lifter:

AMF Magnetics' range of magnetic lifters is light and ingeniously structured for easy application, strong magnetic attraction and safe handling.

Truck-mounted hydraulic cranes are common. By engaging the cranes' hook through the shackle on top of this magnetic lifter heavy objects can be safely manoeuvred by magnetic bond and dragged, lifted and swung where they need to go. Getting a sling under heavy steel materials creates risk. Heavy loads bouncing over rough terrain can shift. Magnetic lifters lock onto metallic items and avoid the use of chains or rope

Farmers and their farms operate 24 hours a day, 7 days a week. Farms can catch fire or flood outside of regular business hours. Unruly stock, like calves and cows enduring forced separation for the process of weaning, can also be problematic and damage steel fencing. At night cows can hear the bellows of their distressed calves from miles away and some of these mothers will walk straight through a barbed wire fence or ram a two-metre high steel stockyard gate to relieve their swollen udders and their milk-starved offspring. These barriers that segregate stock need immediate repair and often can't wait until more suitable hours. A farmer working alone, using a magnetic lifter is able to safely load and unload bundles of steel fencing posts and rolls of wire, long steel gates and high steel stockyard sections onto and off a truck. Alone and safely. Night or day. Foul weather or fair.

Ideal for lifting in factories, Loading Docks, Warehouses and Transportation or Engineering workshops, AMF Magnetics Magnetic Lifters are light, ingeniously constructed for ease of application and have a 3:1 safety factor built into each unit. Another key benefit of the Magnetic Lifters is that they are fitted with the strongest magnetic materials available, Rare Earth Neodymium magnets, which will never weaken, providing durable and consistent operation.



Safety Capability Curve



AMF100 AMF300 AMF600 AMF1000 AMF2000 AMF3000 AMF6000
