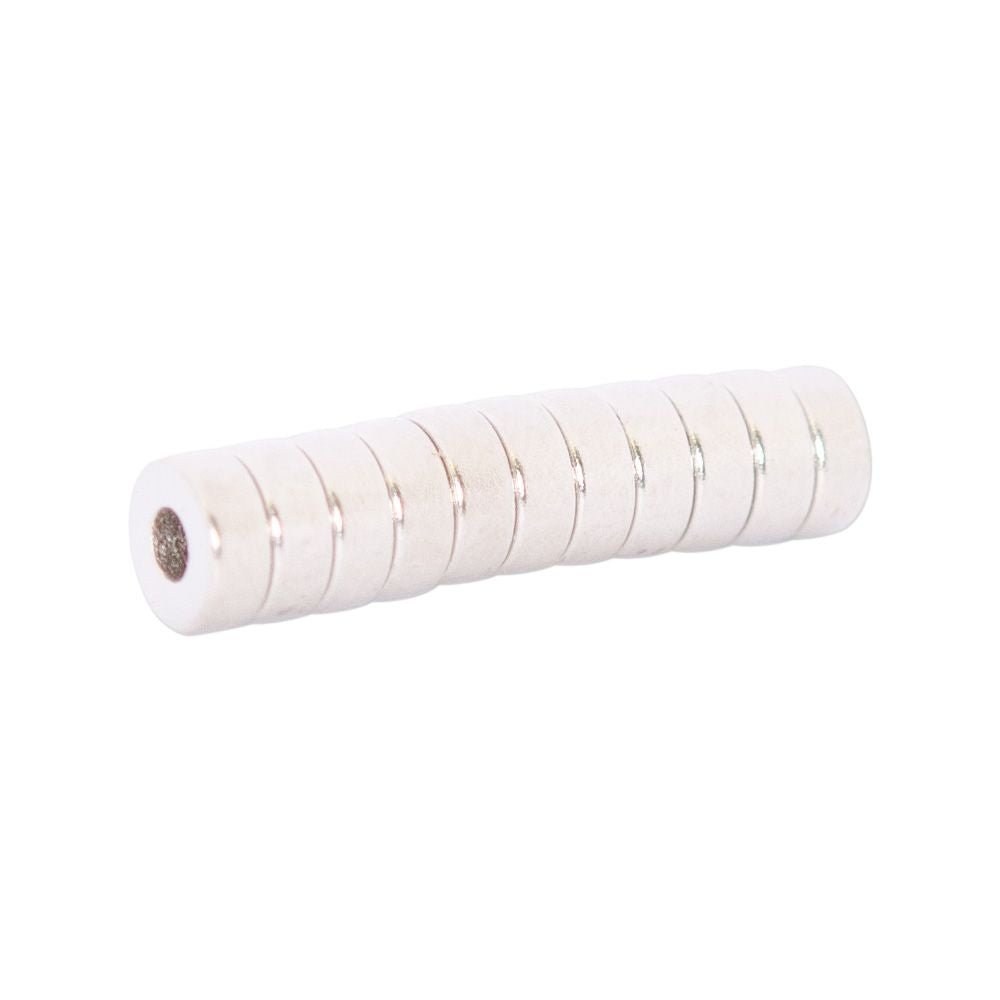

Neodymium Ring Magnet - (OD)5mm x (ID)2mm x (H)2mm | N45

Product code: R-OD5H2ID2-N45

$0.97for 1 to 9 items
$0.80buy 10 to 99 itemsand save 17%
$0.74buy 100+ itemsand save 23%

Prices are GST Incl.

Volume pricing available on request

Neodymium Ring Magnet - (OD)5mm x (ID)2mm x (H)2mm | N45

Product Code R-OD5H2ID2-N45
Pull Force* 450g
Weight 5 gm
Style Rare Earth Ring magnet
Coating Nickel (Ni)
Direction of Magnetisation Axial Through 2mm
Dimensions Outside Diameter:5mm, Inside Diameter:2mm, Thickness:2mm

Magnetic Product Description:

This neodymium magnetic ring has a diameter of 5mm and a height of 2mm. It is identified by the AMF magnet part number R-OD5H2ID2-N45.

Uses for our rare earth ring magnets:

Neodymium magnetic material offers the highest magnetic strength compared with other permanent magnetic materials. This tiny Ring-shaped magnet is very strong for its size and weight and can be integrated into small products to utilise the magnetic properties. They can activate switches and circuitry as they interact with electromagnetic fields. Small permanent magnets can be used to establish a magnetic bond between two surfaces and avoid the use of conventional attachment methods such as clips, pins or glue.
Magnetic folder closures for hobbyist scrapbooking or commercial brochure manufacture are increasing in popularity. Jewelers and costume designers also find magnetic hold a practical and inexpensive option for their creations. Ring shaped magnets and their central hole offer a simple and convenient way to attach the magnet using thread or wire to hold the magnet in place for crafting purposes or can be secured into position by a locating pin in large scale consumer product designs.

Neodymium Ring Magnet - (OD)5mm x (ID)2mm x (H)2mm | N45 (R-OD5H2ID2-N45)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A

Magnetic Product Description:

This neodymium magnetic ring has a diameter of 5mm and a height of 2mm. It is identified by the AMF magnet part number R-OD5H2ID2-N45.

Uses for our rare earth ring magnets:

Neodymium magnetic material offers the highest magnetic strength compared with other permanent magnetic materials. This tiny Ring-shaped magnet is very strong for its size and weight and can be integrated into small products to utilise the magnetic properties. They can activate switches and circuitry as they interact with electromagnetic fields. Small permanent magnets can be used to establish a magnetic bond between two surfaces and avoid the use of conventional attachment methods such as clips, pins or glue.
Magnetic folder closures for hobbyist scrapbooking or commercial brochure manufacture are increasing in popularity. Jewelers and costume designers also find magnetic hold a practical and inexpensive option for their creations. Ring shaped magnets and their central hole offer a simple and convenient way to attach the magnet using thread or wire to hold the magnet in place for crafting purposes or can be secured into position by a locating pin in large scale consumer product designs.

Neodymium Ring Magnet - (OD)5mm x (ID)2mm x (H)2mm | N45 (R-OD5H2ID2-N45)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A
