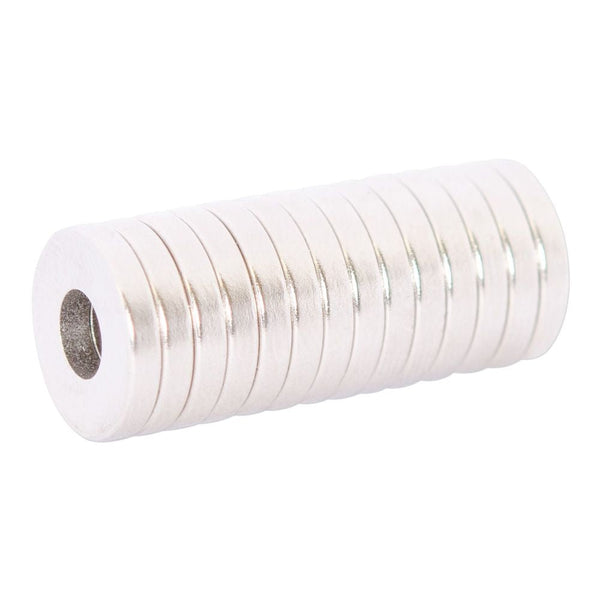

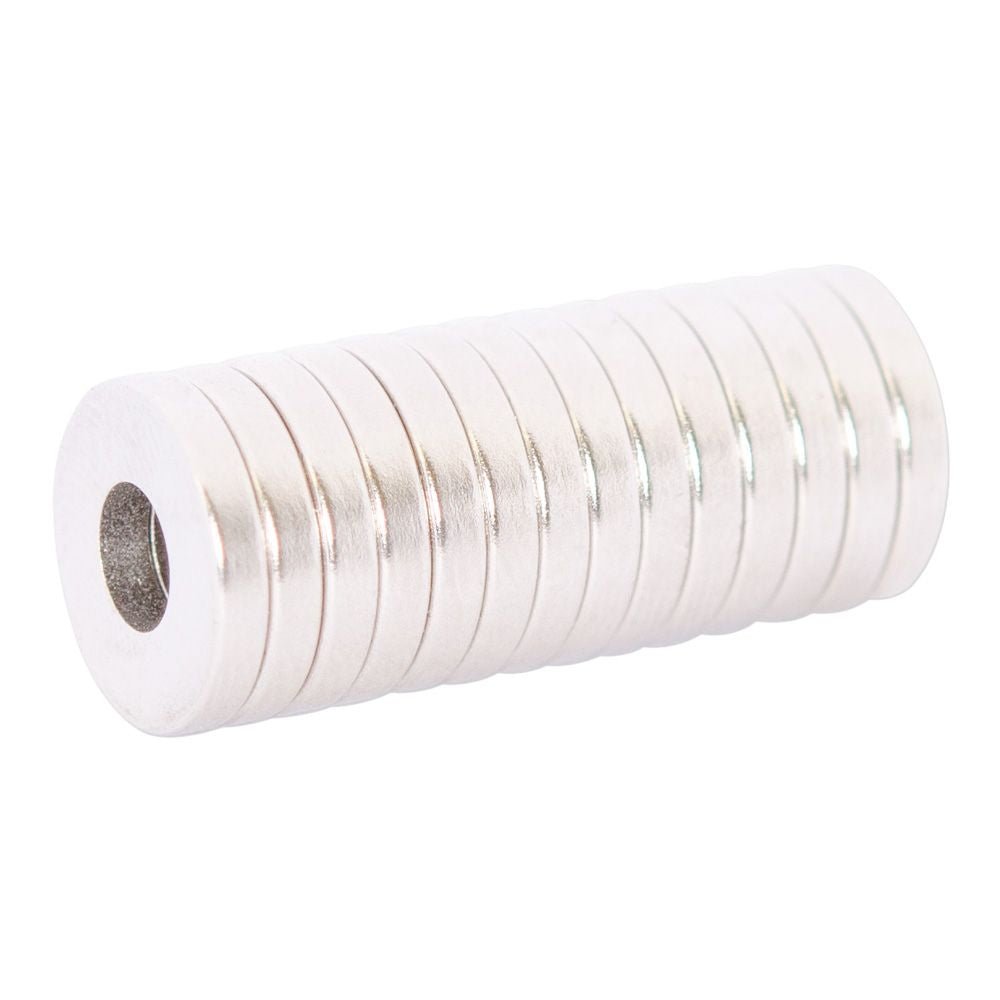

Neodymium Ring Magnet - OD10mm x H1.5mm x ID5mm | N42

Product code: R-OD10H1.5ID5

$3.19for 1 to 9 items
$2.67buy 10 to 99 itemsand save 16%
$2.19buy 100+ itemsand save 32%

Prices are GST Incl.

Volume pricing available on request

Neodymium Ring Magnet - OD10mm x H1.5mm x ID5mm | N42

Product Code R-OD10H1.5ID5
Pull Force* 794g
Weight 5 gm
Style Rare Earth Ring magnet
Coating Nickel (Ni)
Direction of Magnetisation Axial Through 1.5mm
Dimensions Outside Diameter:10mm, Inside Diameter:5mm, Thickness:1.5mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This neodymium magnetic ring has a diameter of 10mm and a height of 1.5mm. It is identified by the AMF magnet part number R-OD10H1.5ID5.

Uses for our rare earth ring magnets:

Neodymium Ring magnets are used in many modern-day products and appliances. Permanent magnets and their magnetic fields can be used to operate electronic devices, sound and communications equipment, computers, smartphones, televisions, speakers and electric motors. Ring-shaped magnets are sometimes applied to pipes that contain fluid to descale or modify the passing contents. In less commercial environments, Neodymium ring magnets make handy hanging or attachment mechanisms for garments and coverings.

The void in the Ring magnet makes it easy to secure in place with wire, string or sewing thread. Ring magnets are sometimes paired with a steel washer to form a closure system on each side of an opening. Small Neodymium ring magnets are also popular with scale model makers and those who want to add a magnetic aspect to their crafts and hobbies.

Neodymium Ring Magnet - OD10mm x H1.5mm x ID5mm | N42 (R-OD10H1.5ID5)

Grade
N42 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.3-1.35 N/A
Coercivity
13-13.5>=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=955 N/A
Grade N42 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.3-1.35 N/A
Coercivity 13-13.5>=836 N/A
Intrinsic Coercivity >=10.5 N/A
Max Energy Product >=955 N/A

Magnetic Product Description:

This neodymium magnetic ring has a diameter of 10mm and a height of 1.5mm. It is identified by the AMF magnet part number R-OD10H1.5ID5.

Uses for our rare earth ring magnets:

Neodymium Ring magnets are used in many modern-day products and appliances. Permanent magnets and their magnetic fields can be used to operate electronic devices, sound and communications equipment, computers, smartphones, televisions, speakers and electric motors. Ring-shaped magnets are sometimes applied to pipes that contain fluid to descale or modify the passing contents. In less commercial environments, Neodymium ring magnets make handy hanging or attachment mechanisms for garments and coverings.

The void in the Ring magnet makes it easy to secure in place with wire, string or sewing thread. Ring magnets are sometimes paired with a steel washer to form a closure system on each side of an opening. Small Neodymium ring magnets are also popular with scale model makers and those who want to add a magnetic aspect to their crafts and hobbies.

Neodymium Ring Magnet - OD10mm x H1.5mm x ID5mm | N42 (R-OD10H1.5ID5)
