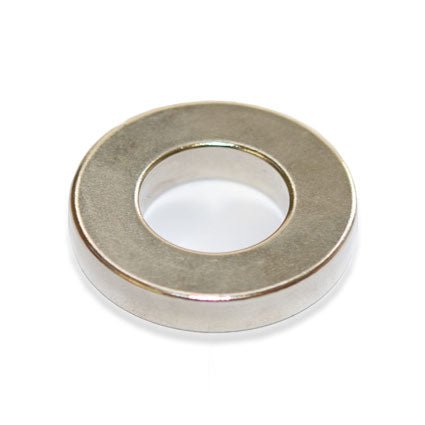

Neodymium Ring Magnet - (OD)30mm x (ID)15.5mm x (H)8mm

Product code: 23003B

$27.03for 1 to 9 items
$20.26buy 10 to 99 itemsand save 25%
$14.84buy 100+ itemsand save 45%

Prices are GST Incl.

Volume pricing available on request

Neodymium Ring Magnet - (OD)30mm x (ID)15.5mm x (H)8mm

Rated 5.0 out of 5
Based on 3 reviews
Product Code 23003B
Pull Force* 13.5 kg
Weight 31 gm
Style Rare Earth Ring magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 8mm
Dimensions Outside Diameter:30mm, Inside Diameter:15.5mm, Thickness:8mm

Magnetic Product Description:

This rare earth ring magnet has an outside diameter of 30mm, an inside diameter of 15.5mm and a height or thickness of 8mm. It is identified by the AMF Magnet part number 23003B.

Uses for our Rare Earth Ring Magnets:

Neodymium Ring Magnets are strong and permanent making them ideal components in processing and manufacturing systems. Variations in the size of the void area (inner diameter) of different rings make the magnetic strength able to be manipulated to suit a particular purpose or application. Although the void reduces the overall volume of magnetic material and hence its overall strength, other benefits relating to positioning and locating on shafts or fixing with wire are valuable characteristics. Neodymium Magnetic Rings have permanent and predictable power and are applied to the designs of highly sensitive and technical equipment developed for the Automotive, Aerospace and Defence industries.

Neodymium Ring Magnet - (OD)30mm x (ID)15.5mm x (H)8mm (23003B)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.09-1.17 N/A
Coercivity
12.3-13>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N38
Max Operating Temperature °C <=80
Remanence 1.09-1.17
Coercivity 12.3-13>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 3 reviews
  • 5 Stars
    3 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
3 Reviews
Reviewed by Barn
I recommend this product
Rated 5 out of 5
Review posted

Great Magnet

Very strong. Does what I expected. A good product.

Loading...
Was this helpful?
Reviewed by Michael
I recommend this product
Rated 5 out of 5
Review posted

So powerful

I perched this magnetic for my butchers steel to keep it magnetised to sharpen my knives

Loading...
Was this helpful?
Reviewed by GWB
I recommend this product
Rated 5 out of 5
Review posted

Used magnet to retrieve car remote & keys

The car remote & keys were accidentally pushed through a small gap underneath an outdoor step and disappeared beneath the wooden floor - I was able to tie string to the to ring magnet, push it through the small gap, latch onto the remote & keys and pull them out through the small gap - wonderful!

Loading...
Was this helpful?
