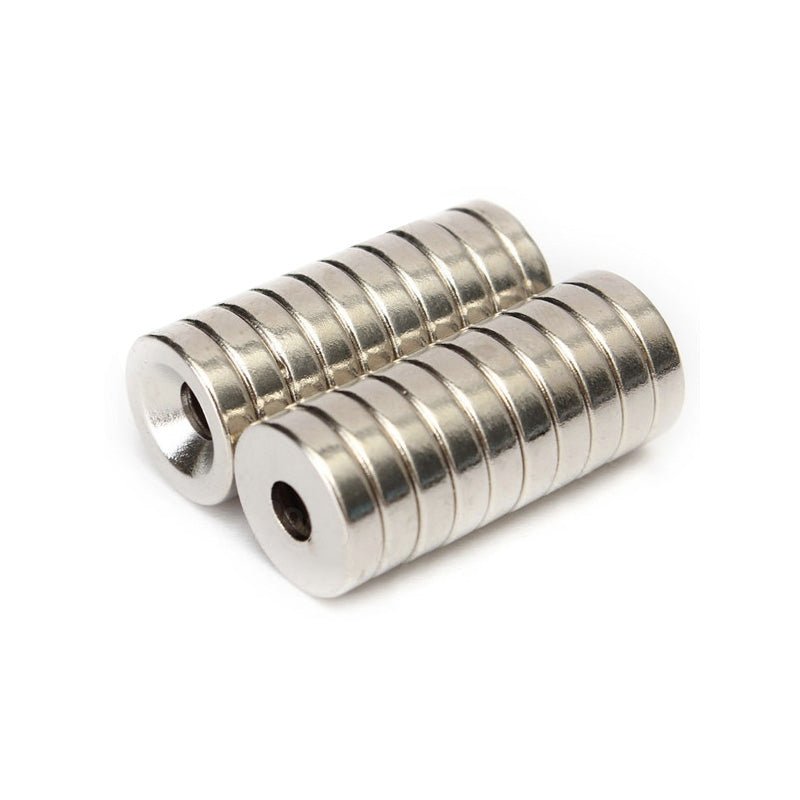

Neodymium Ring Magnet - 12.7mm x 3.12mm x 4mm | Countersunk Face

Product code: 23011

$2.25for 1 to 9 items
$2.09buy 10 to 99 itemsand save 7%
$1.79buy 100+ itemsand save 21%

Prices are GST Incl.

Volume pricing available on request

Neodymium Ring Magnet - 12.7mm x 3.12mm x 4mm | Countersunk Face

Rated 4.0 out of 5
1 Review
Product Code 23011
Pull Force* 2.59 kg
Weight 5 gm
Style Neodymium Ring C/Sunk Face
Dimensions Outside Diameter:12.7mm, Inside Diameter:3.12mm, Thickness:4mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This rare earth ring magnet has an outside diameter of 12.7mm, a countersunk hole with an inside diameter of 3.12mm  and a thickness of 4mm. It is identified by the AMF magnet part number 23011.

Uses for our Rare Earth ring magnets:

Manufacturers use Neodymium Ring magnets in processing plants that produce metal items or items that have metal components. Ring magnets are used to hold, separate, deflect and attract metallic material that passes within its field range during the production process. Ring magnets can be secured in position over raised lugs or by sliding them onto pins or shafts and then used to remove metal contaminants or buffer and repel metal products to prevent machinery damage or jamming. These Rings have a countersunk hole that allows them to be attached with a flat-head screw to timber or plastic surfaces and are N42 Grade which provides stronger holding ability than standard grade rings. Rings have advantages that are not inherent to Disc or Block magnets. Ring magnets can be attached to any material using wire, cable, tape or even string, using the void as an attachment point. Stitched or sewn into garments, Ring magnets make covers or blankets easy to apply or remove and can be attached permanently or removed as required. Ring magnets are unique in this way and can be very practical items to keep around the home or office or remote locations where tools are not always available.

Neodymium Ring Magnet - 12.7mm x 3.12mm x 4mm | Countersunk Face (23011)

Grade
N42 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.3-1.35 N/A
Coercivity
13-13.5>=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=955 N/A
Grade N42 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.3-1.35 N/A
Coercivity 13-13.5>=836 N/A
Intrinsic Coercivity >=10.5 N/A
Max Energy Product >=955 N/A
average rating 4.0 out of 5
Based on 1 review
  • 5 Stars
    0 Reviews
  • 4 Stars
    1 Review
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by John
I recommend this product
Rated 4 out of 5
Review posted

drawer handle

I used a magnet mounted in a wooden handle to pull out small drawers that have no knob due to lack of space. Insert a steel washer into the face of the drawer and use the magnet to pull it out.
