Neodymium Pot Magnet - Diameter 35mm x 12mm | M6 Internal Thread

Product code: AMFYPH35

$18.90 each for 1 to 9 items
$16.10buy 10 to 99 itemsand save 14%
$16.10buy 100+ itemsand save 28%
Total
$18.90

Prices are GST Incl.

Volume pricing available on request

Leading Magnet Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Neodymium Pot Magnet - Diameter 35mm x 12mm | M6 Internal Thread

Product Code AMFYPH35
Pull Force* 24 kg
Dimensions Outside Diameter:35mm, Height:12mm
Coating Stainless steel
*Measured against up to 10mm mild steel.
countersunk

Magnetic Product Description:

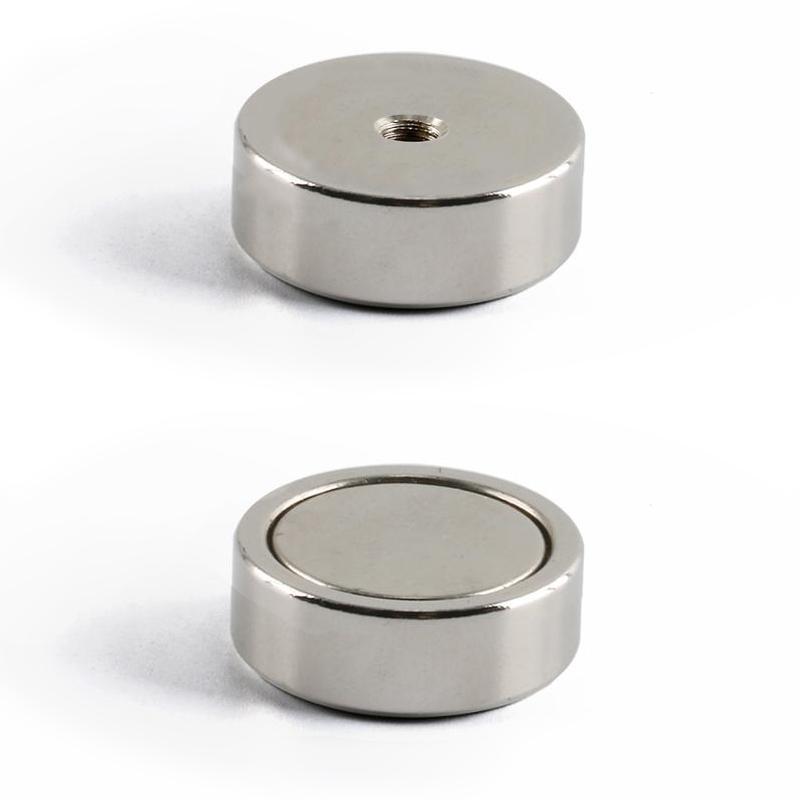

This Neodymium Pot Magnet has an outer diameter of 35mm, and a height of 12mm. It has an internal M6 thread that is 8.8mm deep. It has a pull force of 24 kilograms. This product is identified by AMF Magnetics Product Code AMFYPH35, and is sold per magnet.

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
