Neodymium Magnetic Latch Kit | Holding Strength 0.9kg

Product code: FM-07570

$11.30for 1 to 9 items
$10.46buy 10 to 99 itemsand save 7%
$9.42buy 100+ itemsand save 16%

Prices are GST Incl.

Volume pricing available on request

Neodymium Magnetic Latch Kit | Holding Strength 0.9kg

Product Code FM-07570
Pull Force* 0.9 kg
Weight 35 gm

Product Description:

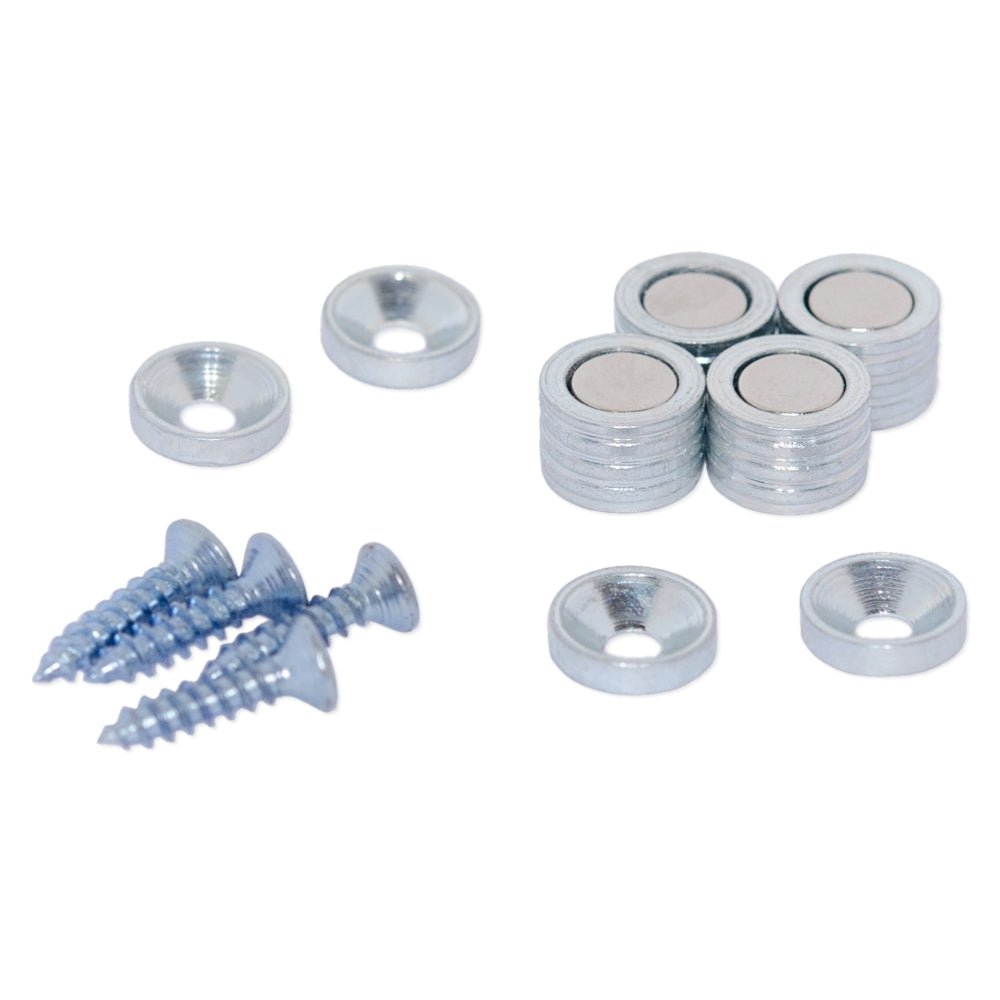

This set of 4 magnetic latches are 9.65mm x 6.35mm each, and have a max holding force of 0.9kg (2lbs) against 10mm mild steel. This product is identified by AMF Product Code FM-07570. Instructions for use: Flush mount steel cup into a 9.65mm (.38 inch) diameter x 6.35mm (.25 inch) deep counterbored hole, then insert the neodymium magnet. Flush or surface mount strike plate securely into opposite surface. Adhere friction disk to face of magnet (optional).

Uses for our Neodymium Magnetic Latch Kits:

Magnetic Latch Kits are very handy products that are available in various styles and configurations that operate in different ways, with different holding power for different applications. The assembly usually contains both a magnet and a metal striker plate that the magnet attaches to, when in the closed position. Most kits contain Ceramic magnetic material that casts a wide magnetic field so the attraction force is more effective. Others contain Neodymium material to meet extra holding strength requirements for cupboards and storage compartments inside vans, boats or recreational vehicles and for other more specialised applications. Devices with brittle ceramic magnets are devised with steel channel or some form of steel overhang to shield the magnet and reduce impact damage to the magnet. The kits are also often used as doorstops, so doors and shutters don't blow open or closed, or so staff or customers can enter or leave a storeroom with their hands full. In this case, the striker plate could be screwed to the lower and outer back of the door for instance, and the Latch Magnet screwed to the wall to secure it in the open position. Some kits are designed to be recessed into cabinetry and attract a metal striker plate or steel washer attached to the cupboard door when in the closed position.

Neodymium Magnetic Latch Kit | Holding Strength 0.9kg (FM-07570)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
