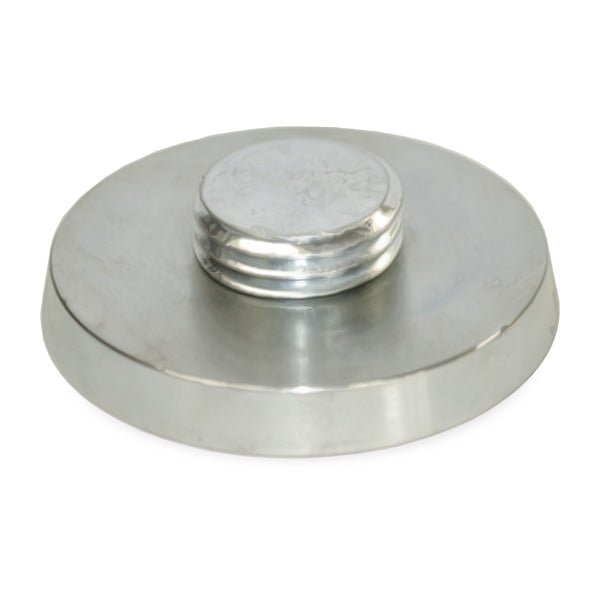

Neodymium Magnetic Fixing Plate D90 M36 Thread

Product code: MFP36

$85.45

Prices are GST Incl.

Volume pricing available on request

Neodymium Magnetic Fixing Plate D90 M36 Thread

Product Code MFP36
Pull Force* 120kg
Weight 400 gm
Style Magnetic Fixing Plate
Coating Zinc
Dimensions Thickness:12mm, Diameter:90mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

Precast Concrete Panels display consistently superior quality to concrete that is made On-site.The controlled atmosphere of a factory ensures evenly cured concrete products in a safe and predictable environment and also allows close monitoring by staff to ensure only first-grade products reach the construction site.Most of the vagaries of On-Site casting are eliminated when the concrete components are pre-made and ready for assembly.Steel Formwork can be repeatedly used to make identical concrete modules of identical quality.Civil Engineers and Private and Public construction projects all rely on Pre-cast concrete sections to meet their safety and economic requirements and almost eliminate structural failures. Government-funded infrastructure initiatives like Bridges, Railways, Tunnels, Elevated Roads and Walkways as well as Factories, Retail Shops and Offices all benefit from the longevity and consistency that Precast concrete sections provide.Architects and Engineers can design with confidence, predictability and economy by using Precast Concrete to reduce labour costs, human error and adverse weather impact.

This Neodymium Magnetic Plate is used to attach Lifting Anchors or Fixing Sockets to the steel formwork when Precast Concrete Panels are being manufactured.Precast panels are made Off-site and need to be transported to the construction area.Without the lifting points and locating holes created by Magnetic Fixing Plates, the pre-formed slabs would be very difficult to crane on to trucks or be lifted into position.The device contains powerful Rare Earth magnets that keep the plate in the required position on steel mouldings or forms during the casting process.Lightly oiling the casing will ensure its easy removal and make it reusable.Various sizes are available to suit a range of concrete panels

This Neodymium Magnetic Plate is used to attach Lifting Anchors or Fixing Sockets to steel formwork when Precast Concrete is being poured. It has a diameter of 90mm with M36 thread, a pull force of 120kg and is identified by AMF Part Number MFP36

Neodymium Magnetic Fixing Plate D90 M36 Thread (MFP36)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A

Magnetic Product Description:

Precast Concrete Panels display consistently superior quality to concrete that is made On-site.The controlled atmosphere of a factory ensures evenly cured concrete products in a safe and predictable environment and also allows close monitoring by staff to ensure only first-grade products reach the construction site.Most of the vagaries of On-Site casting are eliminated when the concrete components are pre-made and ready for assembly.Steel Formwork can be repeatedly used to make identical concrete modules of identical quality.Civil Engineers and Private and Public construction projects all rely on Pre-cast concrete sections to meet their safety and economic requirements and almost eliminate structural failures. Government-funded infrastructure initiatives like Bridges, Railways, Tunnels, Elevated Roads and Walkways as well as Factories, Retail Shops and Offices all benefit from the longevity and consistency that Precast concrete sections provide.Architects and Engineers can design with confidence, predictability and economy by using Precast Concrete to reduce labour costs, human error and adverse weather impact.

This Neodymium Magnetic Plate is used to attach Lifting Anchors or Fixing Sockets to the steel formwork when Precast Concrete Panels are being manufactured.Precast panels are made Off-site and need to be transported to the construction area.Without the lifting points and locating holes created by Magnetic Fixing Plates, the pre-formed slabs would be very difficult to crane on to trucks or be lifted into position.The device contains powerful Rare Earth magnets that keep the plate in the required position on steel mouldings or forms during the casting process.Lightly oiling the casing will ensure its easy removal and make it reusable.Various sizes are available to suit a range of concrete panels

This Neodymium Magnetic Plate is used to attach Lifting Anchors or Fixing Sockets to steel formwork when Precast Concrete is being poured. It has a diameter of 90mm with M36 thread, a pull force of 120kg and is identified by AMF Part Number MFP36

Neodymium Magnetic Fixing Plate D90 M36 Thread (MFP36)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A
