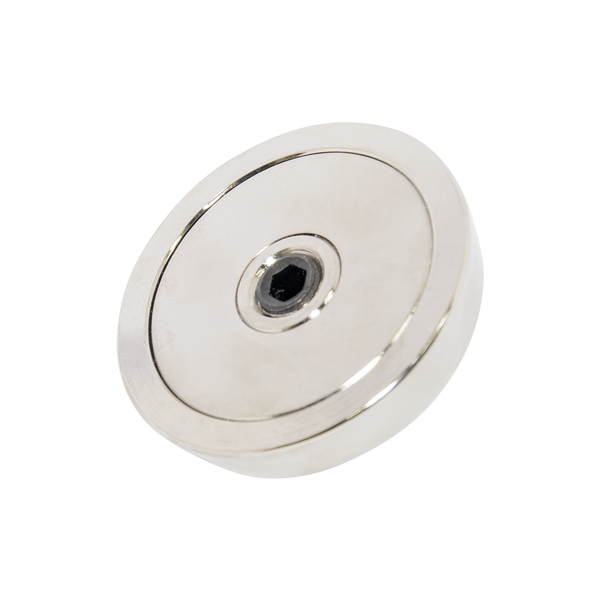

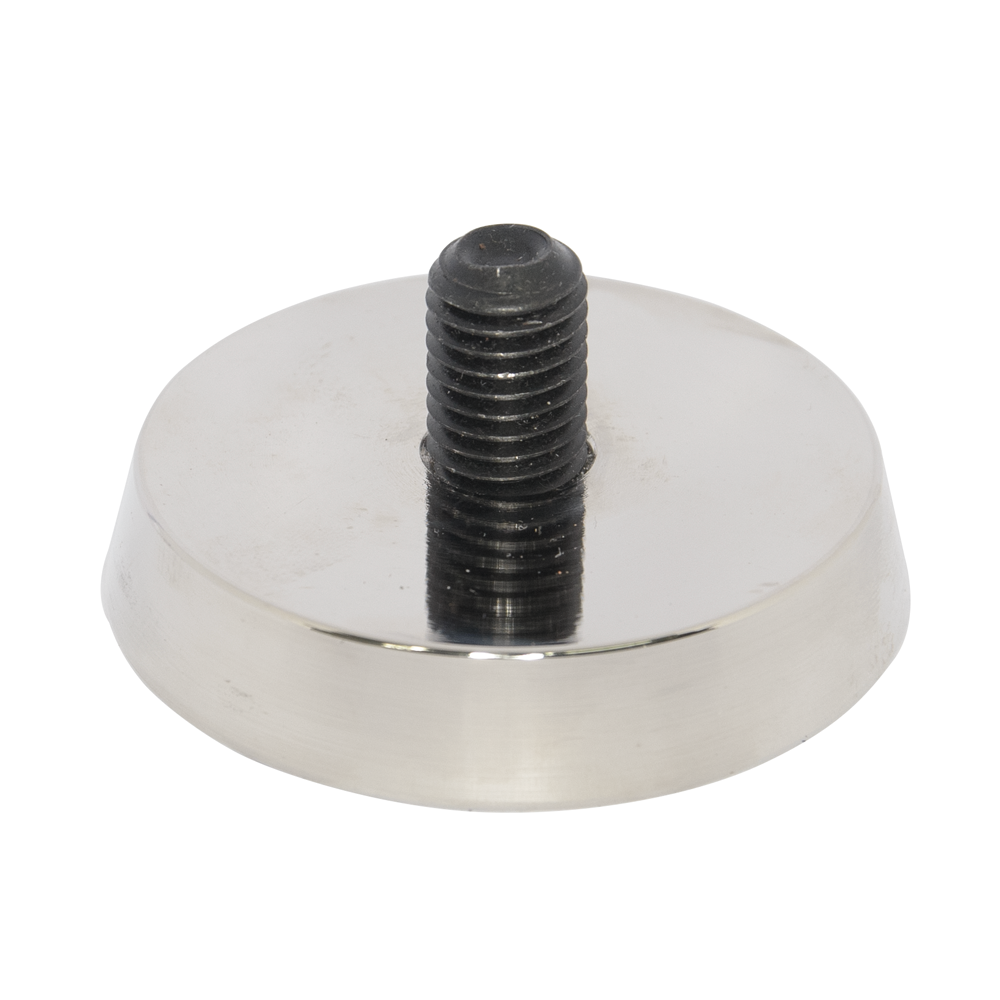

Neodymium Magnetic Fixing Plate | D74mm | M24 Thread

Product code: MFP24

$90.86for 1 to 9 items
$84.05buy 10 to 99 itemsand save 8%
$75.71buy 100+ itemsand save 17%

Prices are GST Incl.

Volume pricing available on request

Neodymium Magnetic Fixing Plate | D74mm | M24 Thread

Product Code MFP24
Pull Force* 100kg
Weight 400 gm
Style Magnetic Fixing Plate
Coating Zinc
Dimensions Thickness:12mm, Diameter:74mm

Magnetic Product Description:

Precast Concrete Panels display consistently superior quality to concrete that is made On-site. The controlled atmosphere of a factory ensures evenly cured concrete products in a safe and predictable environment and also allows close monitoring by staff to ensure only first-grade products reach the construction site. Most of the vagaries of On-Site casting are eliminated when the concrete components are pre-made and ready for assembly. Steel Formwork can be repeatedly used to make identical concrete modules of identical quality. Civil Engineers and Private and Public construction projects all rely on Pre-cast concrete sections to meet their safety and economic requirements and almost eliminate structural failures. Infrastructure projects like Bridges, Railways, Tunnels, Elevated Roads and Walkways as well as Factories, Retail Shops and Offices all benefit from the longevity and consistency that Precast sections provide. Architects and Engineers can design with confidence, predictability and economy by using Precast Concrete to reduce labour costs, human error and adverse weather impact.

This Neodymium Magnetic Plate is used to attach Lifting Anchors or Fixing Sockets to the steel formwork when Precast Concrete Panels are being manufactured. Precast panels are made Off-site and need to be transported to the construction area. Without the lifting points and locating holes created by Magnetic Fixing Plates, the finished concrete slabs would be very difficult to crane on to trucks or to be lifted into position. The device contains powerful Rare Earth magnets that keep the plate in the required position on steel mouldings or forms during the concrete casting process. Lightly oiling the magnetic plate will ensure its easy removal and make it reusable. Various sizes are available to suit a range of concrete panels.

This Neodymium Magnetic Plate is used to attach Lifting Anchors or Fixing Sockets to Steel Formwork when Precast Concrete is being poured. It has a diameter of 74mm with M24 thread, a pull force of100kg and is identified by AMF Part Number MFP24.

Neodymium Magnetic Fixing Plate | D74mm | M24 Thread (MFP24)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
