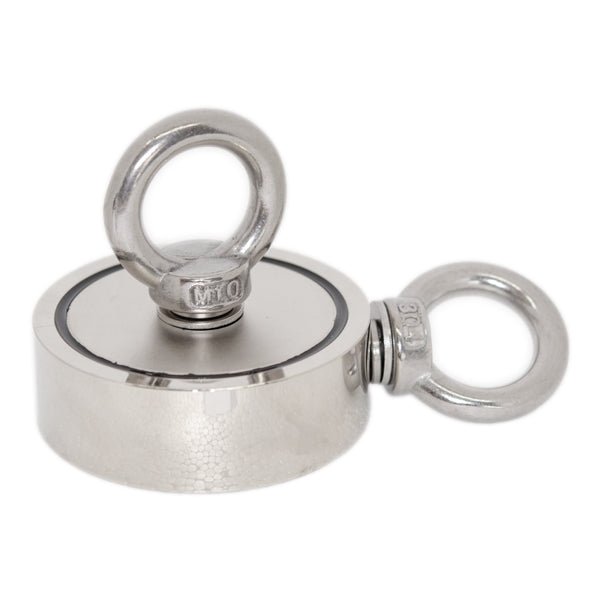

This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 200kg and a weight of 1 kilogram. It has a diameter of 75mm, a total height of 77mm, and a magnet housing width of 25mm. This Neodymium Pot Magnet has two M10 thread, and comes with two M10 eyelets. It is identified by the AMF magnet part number AMFYPSNN75-2.
.
This high strength Neodymium Fishing Magnet is magnetic on both flat faces where the North and South poles reside. This allows for the option to collect metal material more effectively when one eyelet and rope is removed.
When both eyelets are in use, with retrieval ropes attached to both, this Neodymium Fishing Magnet is easier to manoeuvre around obstacles and structures below the surface of lakes, ponds and the like. The maximum holding capacity for this magnet of 200 kg meaning even large submerged objects can be salvaged from their watery locations. This may include car parts, shopping trolleys, bicycles, metal drums, bins, tools, fishing paraphernalia and anything with ferrous metal content that is accidentally lost overboard, including boat anchors. Magnetic Fishing is not confined to watery environments only. Land-based exploration units drilling for minerals or resources like oil and gas use Fishing Magnets to recover broken drill parts and ruptured metal casings from boreholes. Unretrieved, these metal fragments can damage expensive equipment and cause costly delays to important mining projects.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
