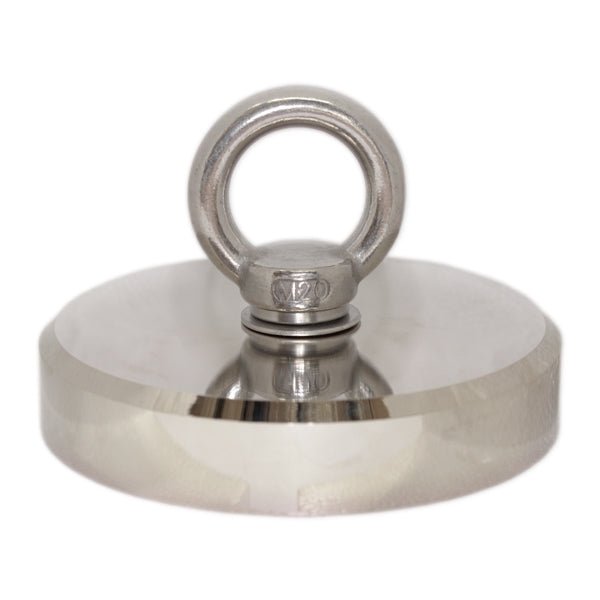

Neodymium Fishing Magnet with M20 Threaded Eyelet - 160mm x 110mm

Product code: AMFYPLNM160

$1,354.84for 1 to 9 items
$1,205.87buy 10 to 99 itemsand save 11%
$1,070.38buy 100+ itemsand save 21%

Prices are GST Incl.

Volume pricing available on request

Neodymium Fishing Magnet with M20 Threaded Eyelet - 160mm x 110mm

Product Code AMFYPLNM160
Pull Force* 1000Kg
Weight 5600 gm
Style Rare Earth Fishing Magnet
Coating Nickel (NiCuNi)
Dimensions Height:110mm, Diameter:160mm

Magnetic Product Description:

This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 1000kg and a weight of 5.6 kilograms. It has a diameter of 160mm, a total height of 110mm, and a magnet housing thickness of 32mm. This Neodymium Pot Magnet has a M20 thread, and comes with a M20 eyelet. It is identified by the AMF magnet part number AMFYPLNM160.

Uses for Rare Earth Threaded Eyelet Pot Fishing Magnets:

This Neodymium holding pot magnet is perfect for magnetic fishing and retrieving applications. Use the powerful magnet for magnetic fishing, lifting, hanging, or any situation where you need a strong magnet. The product includes a Stainless Steel M20 Eyelet. The nickel coating helps prevent damage such as chipping or cracking. Thread locker is strongly recommended for magnet fishing to keep the eyelet from backing out.

Neodymium Fishing Magnet with M20 Threaded Eyelet - 160mm x 110mm (AMFYPLNM160)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
