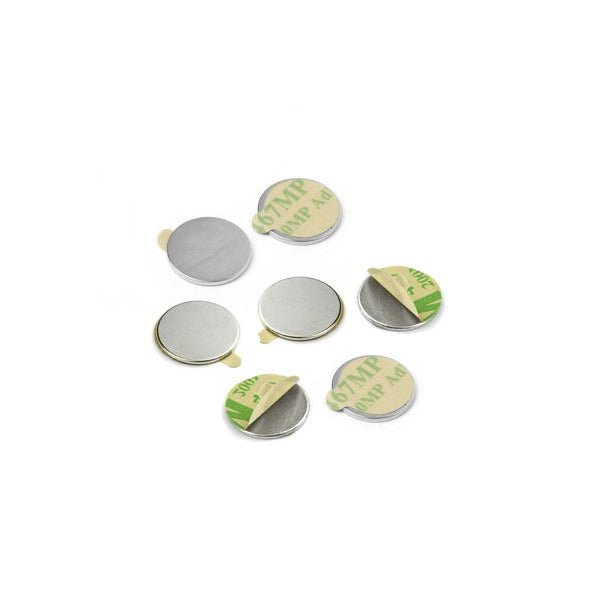

Self-Adhesive Neodymium Disc Magnets - 12mm x 1mm | SOLD PER PAIR
Product code: 61005
$4.54buy 10 to 99 itemsand
save 10%
$3.59buy 100+ itemsand
save 29%
Total
$5.08
Leading Magnet Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Self-Adhesive Neodymium Disc Magnets - 12mm x 1mm | SOLD PER PAIR
Rated 5.0 out of 5
Product Code
61005
Pull Force*
0.585kg
Weight
1 gm
Style
Rare Earth Disc S/A Pair (MOQ 5 Pairs) N35
Coating
Nickel (NiCuNi)
Dimensions
Height:1mm, Diameter:12mm
*Measured against up to 10mm mild steel.
Magnetic Product Description:
This pair of rare earth disc magnets have a diameter of 12mm and a height of 1mm. They have the 3M adhesive on each opposite of the pair of magnets. The adhesive has a thickness of 0.06 mm.
Uses for our pair of Rare Earth Disc Magnets:
This Self-Adhesive Pair of Neodymium Discs comes with 10mm x 2mm dimensions. One of the paired discs can be attached to an item with the adhesive, the other to the desired surface. The matching North/South poles attract and hold the two objects together magnetically. The glue and magnets are strong but these paired discs are usually utilized for attaching lightweight items such as decorations, calendars and signage to Non- Metallic surfaces for both temporary and permanent attachment purposes.
When you want to bond two non-metallic surfaces together such as binders, book covers, folders or brochures, this pair of Rare Earth disc magnets is very handy. They can also be used for adhering different objects to various surfaces at your office, warehouse or home. Different shapes and sizes are available in this product range, so the appropriate holding force can be attained for differently weighted objects and applications. This pair of matching magnets is identified by the AMF magnet part number 61005.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
