Product code: D-D8H3-N50
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*

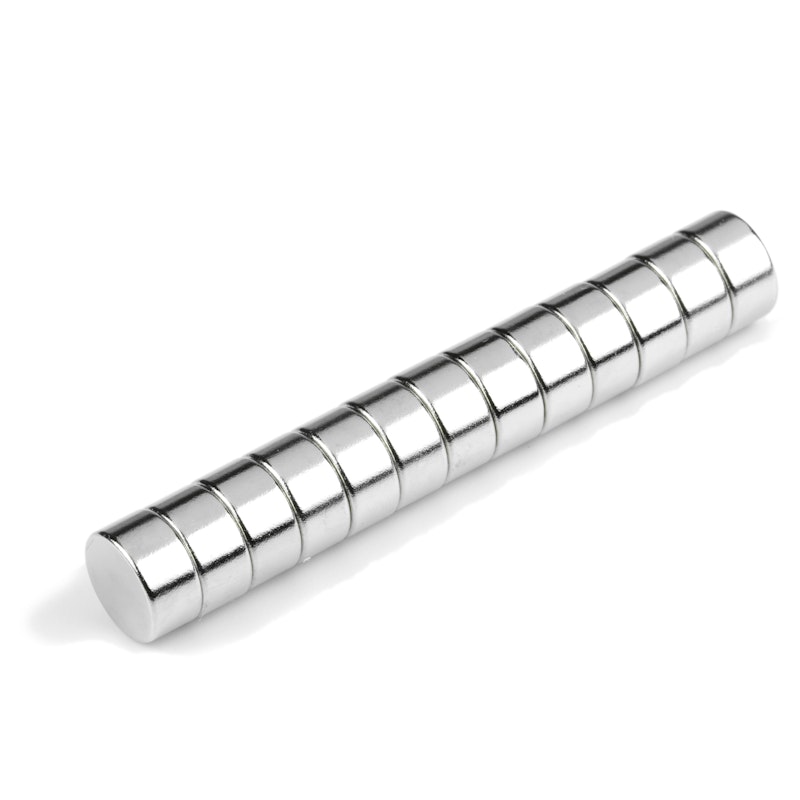

This neodymium magnetic disc has a diameter of 8mm and a height of 3mm. It has a magnetic flux reading of 4349 Gauss and a pull force of 1.67 kilos. It is identified by the AMF magnet part number D-D8H3-N50.
Thin, disc-shaped magnets make it easy to join two surfaces magnetically. A disc magnet is easily glued into position with an epoxy adhesive to make timber, glass, alloy and plastic materials compatible with steel surfaces. This has handy applications in both commercial and domestic kitchens for hanging utensils in a convenient and hygienic way. Endless other opportunities exist to use magnetic adhesion for domestic, commercial and industrial purposes. Powerful Neodymium material inside this small nickel-plated disc is able to support weights of more than 1kg. Attachment with magnetic power is fast, simple, clean and modern. It is also long-lasting and operates without the need for external power or the moving parts used by more conventional fasteners that can potentially deteriorate over time.
| Quality |
Rated 5 out of 5
|
| Ease of Use |
Rated 5 out of 5
|
| Value |
Rated 4 out of 5
|
| Strength |
Rated 5 out of 5
|
Great service and process went smoothly for my online order with items turning up a few days later after ordering - now I have to get into making my 3D printing projects.
Thanks magnets were just what I required and at a excellent price.
Cheers Damien

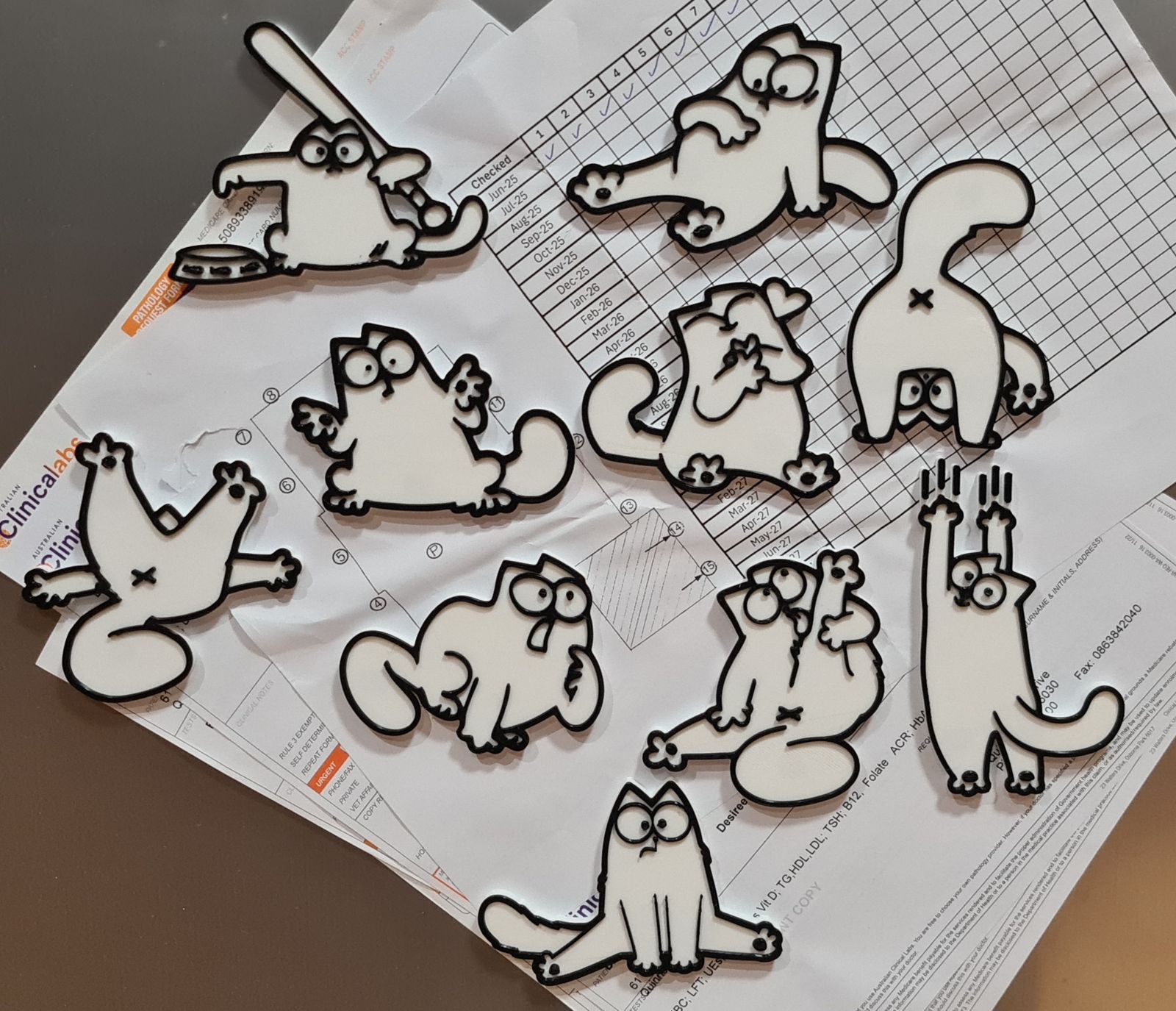

These 3D printed magnets star the popular UK character Simon's Cat. These fridge magnets contain three embedded 8mmx3mm magnets, making them strong enough to hold anything to the fridge
Powerful little things, working well.
Great magnets for my knife block.
Fast service from AMF and easy pick up.
I highly recommend AMF to anyone.
Great quality and great strength.
| Quality |
Rated 5 out of 5
|
|---|---|
| Ease of Use |
Rated 5 out of 5
|
| Value |
Rated 5 out of 5
|
| Strength |
Rated 5 out of 5
|
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
This neodymium magnetic disc has a diameter of 8mm and a height of 3mm. It has a magnetic flux reading of 4349 Gauss and a pull force of 1.67 kilos. It is identified by the AMF magnet part number D-D8H3-N50.
Thin, disc-shaped magnets make it easy to join two surfaces magnetically. A disc magnet is easily glued into position with an epoxy adhesive to make timber, glass, alloy and plastic materials compatible with steel surfaces. This has handy applications in both commercial and domestic kitchens for hanging utensils in a convenient and hygienic way. Endless other opportunities exist to use magnetic adhesion for domestic, commercial and industrial purposes. Powerful Neodymium material inside this small nickel-plated disc is able to support weights of more than 1kg. Attachment with magnetic power is fast, simple, clean and modern. It is also long-lasting and operates without the need for external power or the moving parts used by more conventional fasteners that can potentially deteriorate over time.
| Quality |
Rated 5 out of 5
|
| Ease of Use |
Rated 5 out of 5
|
| Value |
Rated 4 out of 5
|
| Strength |
Rated 5 out of 5
|
Great service and process went smoothly for my online order with items turning up a few days later after ordering - now I have to get into making my 3D printing projects.
Thanks magnets were just what I required and at a excellent price.
Cheers Damien
These 3D printed magnets star the popular UK character Simon's Cat. These fridge magnets contain three embedded 8mmx3mm magnets, making them strong enough to hold anything to the fridge
Powerful little things, working well.
Great magnets for my knife block.
Fast service from AMF and easy pick up.
I highly recommend AMF to anyone.
Great quality and great strength.
| Quality |
Rated 5 out of 5
|
|---|---|
| Ease of Use |
Rated 5 out of 5
|
| Value |
Rated 5 out of 5
|
| Strength |
Rated 5 out of 5
|
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
