Neodymium Disc Magnet - 12mm x 5mm | N52

Product code: D-D12H5-N52

$7.59for 1 to 9 items
$6.92buy 10 to 99 itemsand save 9%
$5.80buy 100+ itemsand save 24%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 12mm x 5mm | N52

Product Code D-D12H5-N52
Pull Force* 4.68 kg
Weight 50 gm
Style Neodymium DISC
Coating Nickel
Direction of Magnetisation Axially through height
Dimensions Height:5mm, Diameter:12mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

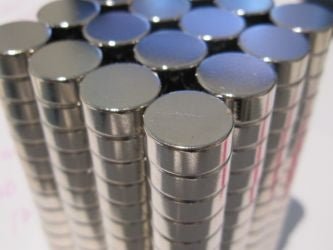

This neodymium magnetic disc has a diameter of 12mm and a height of 5mm. It has a magnetic flux reading of 4731 Gauss and a pull force of 4.68 kilos. It is identified by the AMF magnet part number D-D12H5-N52.

Uses for our rare earth disc magnets:

This disc has N52 Grade Neodymium beneath the Nickel coated exterior which ensures maximum holding strength is extracted from a magnet of these dimensions. This button-like magnet has surprising holding strength for its size. Most modern technologies harness the power of Neodymium magnets to improve the way they function and to increase their reliability and accuracy. The strong and permanent power emitted by Neodymium magnetic material in this disc form can interact with electrical circuits. Disc magnets can act as electrical switches or perform as guidance and positioning indicators. Neodymium magnets of all shapes are widely used in the important devices that drive electric motors, defense systems, weaponry and vital communications equipment used by the Armed Forces. High strength magnets also increase the capacity for information storage of any equipment that relies on a computer hard drive to operate.

Neodymium Disc Magnet - 12mm x 5mm | N52 (D-D12H5-N52)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A

Magnetic Product Description:

This neodymium magnetic disc has a diameter of 12mm and a height of 5mm. It has a magnetic flux reading of 4731 Gauss and a pull force of 4.68 kilos. It is identified by the AMF magnet part number D-D12H5-N52.

Uses for our rare earth disc magnets:

This disc has N52 Grade Neodymium beneath the Nickel coated exterior which ensures maximum holding strength is extracted from a magnet of these dimensions. This button-like magnet has surprising holding strength for its size. Most modern technologies harness the power of Neodymium magnets to improve the way they function and to increase their reliability and accuracy. The strong and permanent power emitted by Neodymium magnetic material in this disc form can interact with electrical circuits. Disc magnets can act as electrical switches or perform as guidance and positioning indicators. Neodymium magnets of all shapes are widely used in the important devices that drive electric motors, defense systems, weaponry and vital communications equipment used by the Armed Forces. High strength magnets also increase the capacity for information storage of any equipment that relies on a computer hard drive to operate.

Neodymium Disc Magnet - 12mm x 5mm | N52 (D-D12H5-N52)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A
