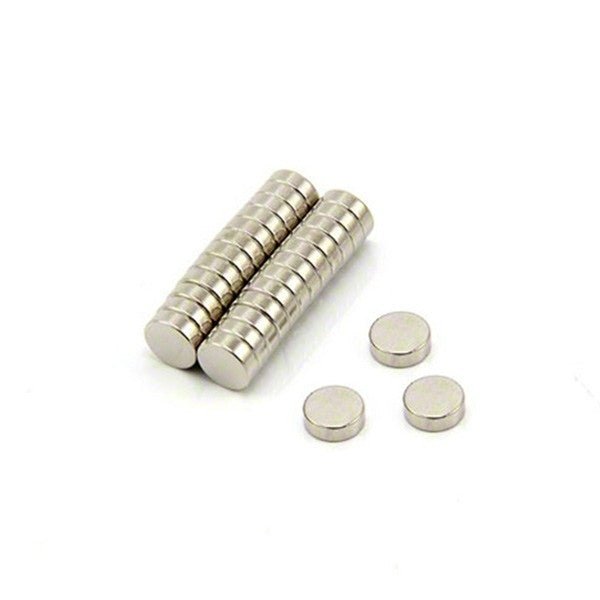

Neodymium Disc Magnet - 6mm x 2mm | N35 | Diametrically Magnetised

Product code: 93201

$0.67

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 6mm x 2mm | N35 | Diametrically Magnetised

Rated 5.0 out of 5
1 Review
Product Code 93201
Pull Force* 0.500kg
Weight 1 gm
Style Rare Earth Disc magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Diametrically magnetised
Dimensions Outside Diameter:6mm, Height:2mm

Magnetic Product Description:

This Rare Earth disc has a diameter of 6mm and a height of 2mm. It has a magnetic flux reading of 3356 Gauss and a pull force of 500 grams. It is identified by the AMF magnet part number 93201.

Uses for our rare earth disc magnets:

Metal separation, picking up nails & screws, water conditioning, building generators, magnetic stirrers, metal detectors, holding, magic tricks, and brochure closures.

Neodymium Disc Magnet - 6mm x 2mm | N35 | Diametrically Magnetised (93201)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35
Max Operating Temperature °C <=80
Remanence 1.18-1.25
Coercivity 11.8-12.5>=859
Intrinsic Coercivity >=10.8
Max Energy Product >=955

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Hungry
I recommend this product
Rated 5 out of 5
Review posted

Box lid closures

Great product, super efficient store and delivery
