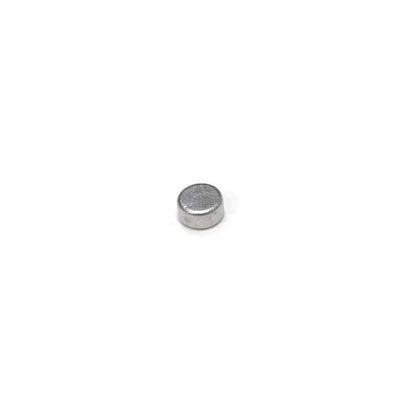

Neodymium Disc Magnet - 2mm x 1mm | N48

Product code: D-D2H1-N48

$0.34for 1 to 99 items
$0.30buy 100 to 999 itemsand save 12%
$0.24buy 1000+ itemsand save 28%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 2mm x 1mm | N48

Rated 5.0 out of 5
Based on 1 review
Product Code D-D2H1-N48
Pull Force* 63 gr
Weight 1 gm
Style Rare Earth Disc magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Through height - 1mm
Dimensions Height:1mm, Diameter:2mm

Magnetic Product Description:

This neodymium disc has a diameter of 2mm and a height of 1mm. It has a magnetic flux reading of 5022 Gauss and a pull force of 63 grams. It is identified by the AMF magnet part number D-D2H1-N48.

Uses for our 2mm x 1mm Rare Earth disc magnets:

Small Neodymium disc-shaped magnets like these tiny 2mm x 1mm magnets are suitable for applications where space is restricted or a precise level of magnetic force is appropriate in the operation of a device or piece of technical equipment. The low height dimension associated with disc magnets facilitates product designs with slimmer and sleeker features. Large scale manufacturers of all manner of products include these small yet powerful magnets in the design of their products. Innovative products in the world of electronics and communications utilise magnets and their properties to control and enhance the way their products operate.

Neodymium discs have excellent strength to size ratio and this helps keep products that integrate them into their operation to be physically smaller in size, yet highly functional. The influential or attractive fields of Magnets play an ever-growing part in a vast range of modern technologies, from mobile phones to modern automobiles, including electric and hybrid vehicles.

Aerospace projects, where fuel loads and energy is largely finite, find the permanence of magnetic power crucial to their success. The N48 Grade magnetic material used in this magnet is the second highest available and increases the field intensity of this magnet to that of a physically larger magnet.

Neodymium Disc Magnet - 2mm x 1mm | N48 (D-D2H1-N48)

Grade
N48 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.37-1.43 N/A
Coercivity
13.7-14.3>=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N48
Max Operating Temperature °C <=80
Remanence 1.37-1.43
Coercivity 13.7-14.3>=836
Intrinsic Coercivity >=10.5
Max Energy Product >=875

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Trendy
I recommend this product
Rated 5 out of 5
Review posted

Strong hold

Perfect size, glued them to my glasses for magnetic sunglasses. Strong hold
