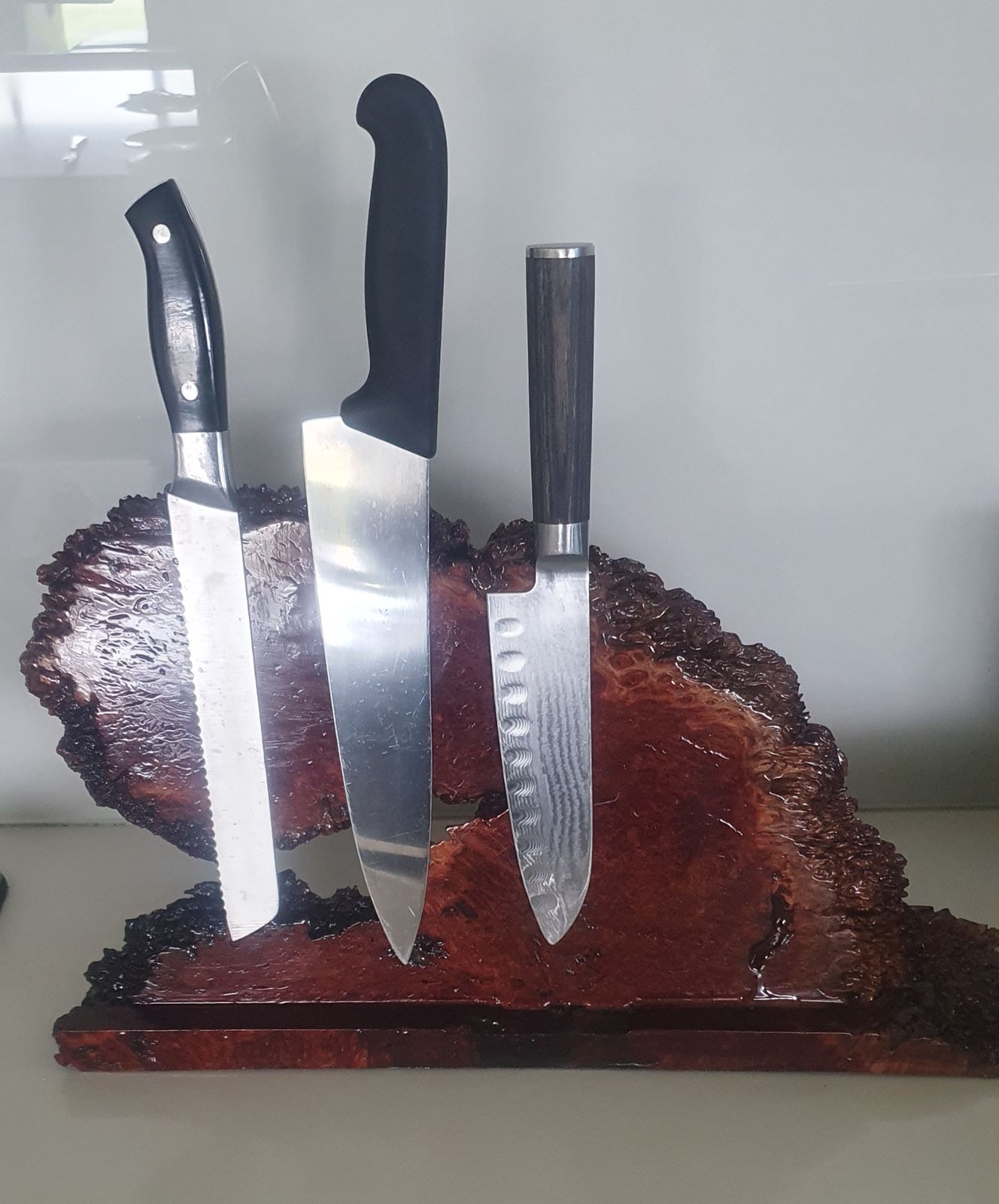

Reviewed by Chris
I recommend this product
Best magnets ever
These magnets are so awesome and are very strong
Loading...
Was this helpful?
Neodymium Disc - 20mm x 5mm
Product code: 20015
$9.12for 1 to 9 items
$6.84buy 10 to 99 itemsand
save 25%
$5.12buy 100+ itemsand
save 44%
Neodymium Disc - 20mm x 5mm
Rated 5.0 out of 5
Product Code
20015
Pull Force*
7 kg
Weight
12 gm
Style
Rare Earth Disc magnet
Coating
Nickel (NiCuNi)
Direction of Magnetisation
Axially magnetised
Dimensions
Height:5mm, Diameter:20mm
Magnetic Product Description:
This rare earth disc has a diameter of 20mm and a height of 5mm. It has a magnetic flux reading of 2817 Gauss and a pull force of 7kg. It is identified by the AMF magnet part number 20015
Uses for our rare earth disc magnets:
This shape enables fast and repeated removal by sheer force applied from the horizontal plane ie: sliding motion. It can be easily slid over the edge of a metallic surface into clear space but is not easily removed with vertical force.It is easily rebated into timber or fibreboard material and glued in place to make seamless joins or to allow components of a model or display to be quickly erected or dismantled.Other applications include metal detecting and separation and water treatment and conditioning.Neodymium magnets have superior strength to all other permanent magnets and this makes them very popular for use in clamping and holding devices.
Neodymium Disc - 20mm x 5mm (20015)
| Grade | |
|---|---|
| N38 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence | |
| 1.09-1.17 | N/A |
| Coercivity | |
| 12.3-13>=859 | N/A |
| Intrinsic Coercivity | |
| >=10.8 | N/A |
| Max Energy Product | |
| >=955 | N/A |
| Grade | N38 |
| Max Operating Temperature °C | <=80 |
| Remanence | 1.09-1.17 |
| Coercivity | 12.3-13>=859 |
| Intrinsic Coercivity | >=10.8 |
| Max Energy Product | >=955 |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
