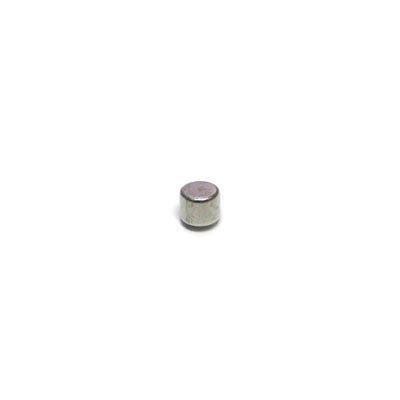

Neodymium Disc Magnet - 2.5mm x 2mm

Product code: 20100

$0.39for 1 to 99 items
$0.34buy 100 to 999 itemsand save 13%
$0.27buy 1000+ itemsand save 31%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 2.5mm x 2mm

Rated 5.0 out of 5
Based on 3 reviews
Product Code 20100
Pull Force* .158 kg
Weight 1 gm
Style Rare Earth Disc magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:2mm, Diameter:2.5mm

Magnetic Product Description:

This rare earth disc has a diameter of 2.5mm and a height of 2mm. It has a magnetic flux reading of 5597 Gauss and a pull force of 158 grams. It is identified by the AMF magnet part number 20100.

Uses for our Rare Earth disc magnets:

This Rare Earth N42 grade magnet is stronger than N38 grade magnets of the same dimensions.It is used commonly where a specific pull- force is essential to the operation of a device or apparatus, such as electronic equipment, computers, smartphones and sensitive monitoring systems.The increased pull force of Grade N42 helps maintain magnetic energy and performance in small or restricted space applications.

Industrial designers, Engineering shops, Fabricators and Manufacturers of Electronic equipment all find uses for these magnets in their products.

Neodymium Disc Magnet - 2.5mm x 2mm (20100)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 3 reviews
  • 5 Stars
    3 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
3 Reviews
Reviewed by Mathew
I recommend this product
Rated 5 out of 5
Review posted

Stronger than anticipated.

Can tell these are quality products.

Loading...
Was this helpful?
Reviewed by Chris
I recommend this product
Rated 5 out of 5
Review posted

wooden box lid

I used these magnets to hold the lid of a wooden box in the closed position, while making it very easy to open the lid, the magnets were the perfect soluton and I will use this method again in the future

Loading...
Was this helpful?
Reviewed by Mike
I recommend this product
Rated 5 out of 5
Review posted

Great item for hobby work

I've used these for pinning parts on a 28mm figures all the way to merging parts on a 1/250 scale enterprise. I strongly recommend these as they are hard to shatter and easy to fit.

Loading...
Was this helpful?
