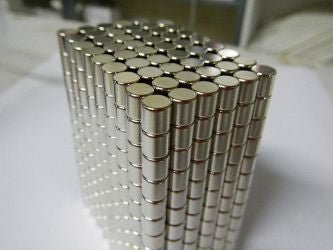

Neodymium Cylinder Magnet - 6mm x 6mm | N50

Product code: C-D6H6-N50-Ni

$1.76for 1 to 9 items
$1.35buy 10 to 99 itemsand save 23%
$1.22buy 100+ itemsand save 31%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 6mm x 6mm | N50

Rated 5.0 out of 5
Based on 1 review
Product Code C-D6H6-N50-Ni
Pull Force* 1.59kg
Weight 1 gm
Style Rare Earth Cylinder
Coating Nickel (Ni)
Direction of Magnetisation Axially (through height)
Dimensions Height:6mm, Diameter:6mm

Magnetic Product Description:

This popular rare earth cylinder has a diameter of 6mm and a height of 6mm. It is an N50 grade rare earth magnet. It has a pull force of 1.59kg. It is identified by the AMF magnet part number C-D6H6-N50-Ni.

Uses for our rare earth cylinder magnets:

This petite Rare Earth rod magnet is every craft maker’s dream. It is made from powerful N50 grade Neodymium magnet material. Little permanent magnets like these are the ideal size and strength for embedding into intricate and delicate craft projects such as fine wooden jewellery cabinets, felt creations and cardboard or paper artworks.
Cylindrical Neodymium magnets have more magnetic material between the two opposing poles, this generates a magnetic field that extends for a greater distance from the magnet surface. Furthermore, the magnetic field is more targeted than what is produced by most other shapes of magnets. Therefore cylinder magnets are well suited for recessing into surfaces where their powerful and narrow magnetic field can hold the corresponding magnets or steel with precision.
This magnet is silver in appearance due to the Nickel coating, which is not only more aesthetically appealing than the dull appearance of ceramic magnets, it also helps to protect the magnet from corrosion.

Neodymium Cylinder Magnet - 6mm x 6mm | N50 (C-D6H6-N50-Ni)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.4-1.46 N/A
Coercivity
14-14.6 >=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N50
Max Operating Temperature °C <=80
Remanence 1.4-1.46
Coercivity 14-14.6 >=836
Intrinsic Coercivity >=10.5
Max Energy Product >=875

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
