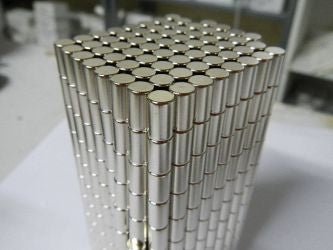

Neodymium Cylinder Magnet - 6mm x 10mm | N50

Product code: C-D6H10-N50

$1.28for 1 to 9 items
$1.10buy 10 to 99 itemsand save 14%
$0.99buy 100+ itemsand save 23%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 6mm x 10mm | N50

Product Code C-D6H10-N50
Pull Force* 1.74 kgs
Weight 7 gm
Style Rare Earth Cylinder
Coating Nickel (Ni)
Direction of Magnetisation Axially (through height)
Dimensions Height:10mm, Diameter:6mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This popular rare earth cylinder has a diameter of 6mm and a height of 10mm. It is an N50 grade rare earth magnet. It has a magnetic flux reading of 6942 Gauss and a pull force of 1.74kg. It is identified by the AMF magnet part number C-D6H10-N50.

Uses for our rare earth cylinder magnets:

The powerful magnetic field produced by Rare Earth Cylinder magnets is narrower and more focused than a thinner disc-shaped magnet. These characteristics make cylinder magnets ideal for penetrating thin substrates and locating metal that is not necessarily visible with the naked eye. For this reason they are the magnet shape most frequently used in magnetic equipment that is designed to detect or retrieve such as stud finders or pick up tools. They are often a key component of commercially made magnetic products that are designed to have a similar function.

Small rod magnets such as these are incredibly adaptable and they lend themselves to a large array of applications. Cylindrical magnets are a good choice for handcrafted items including delicate woodwork or refined ceramics as they can be recessed into the material to provide a permanent and reliable hold with minimal visual impact. Magnets can be used in this way to create a magnetic latch or a means of displaying an art or craft piece without disrupting the visual effect.

Neodymium Cylinder Magnet - 6mm x 10mm | N50 (C-D6H10-N50)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.4-1.46 N/A
Coercivity
14-14.6 >=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N50 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.4-1.46 N/A
Coercivity 14-14.6 >=836 N/A
Intrinsic Coercivity >=10.5 N/A
Max Energy Product >=875 N/A

Magnetic Product Description:

This popular rare earth cylinder has a diameter of 6mm and a height of 10mm. It is an N50 grade rare earth magnet. It has a magnetic flux reading of 6942 Gauss and a pull force of 1.74kg. It is identified by the AMF magnet part number C-D6H10-N50.

Uses for our rare earth cylinder magnets:

The powerful magnetic field produced by Rare Earth Cylinder magnets is narrower and more focused than a thinner disc-shaped magnet. These characteristics make cylinder magnets ideal for penetrating thin substrates and locating metal that is not necessarily visible with the naked eye. For this reason they are the magnet shape most frequently used in magnetic equipment that is designed to detect or retrieve such as stud finders or pick up tools. They are often a key component of commercially made magnetic products that are designed to have a similar function.

Small rod magnets such as these are incredibly adaptable and they lend themselves to a large array of applications. Cylindrical magnets are a good choice for handcrafted items including delicate woodwork or refined ceramics as they can be recessed into the material to provide a permanent and reliable hold with minimal visual impact. Magnets can be used in this way to create a magnetic latch or a means of displaying an art or craft piece without disrupting the visual effect.

Neodymium Cylinder Magnet - 6mm x 10mm | N50 (C-D6H10-N50)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.4-1.46 N/A
Coercivity
14-14.6 >=836 N/A
Intrinsic Coercivity
>=10.5 N/A
Max Energy Product
>=875 N/A
Grade N50 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.4-1.46 N/A
Coercivity 14-14.6 >=836 N/A
Intrinsic Coercivity >=10.5 N/A
Max Energy Product >=875 N/A
