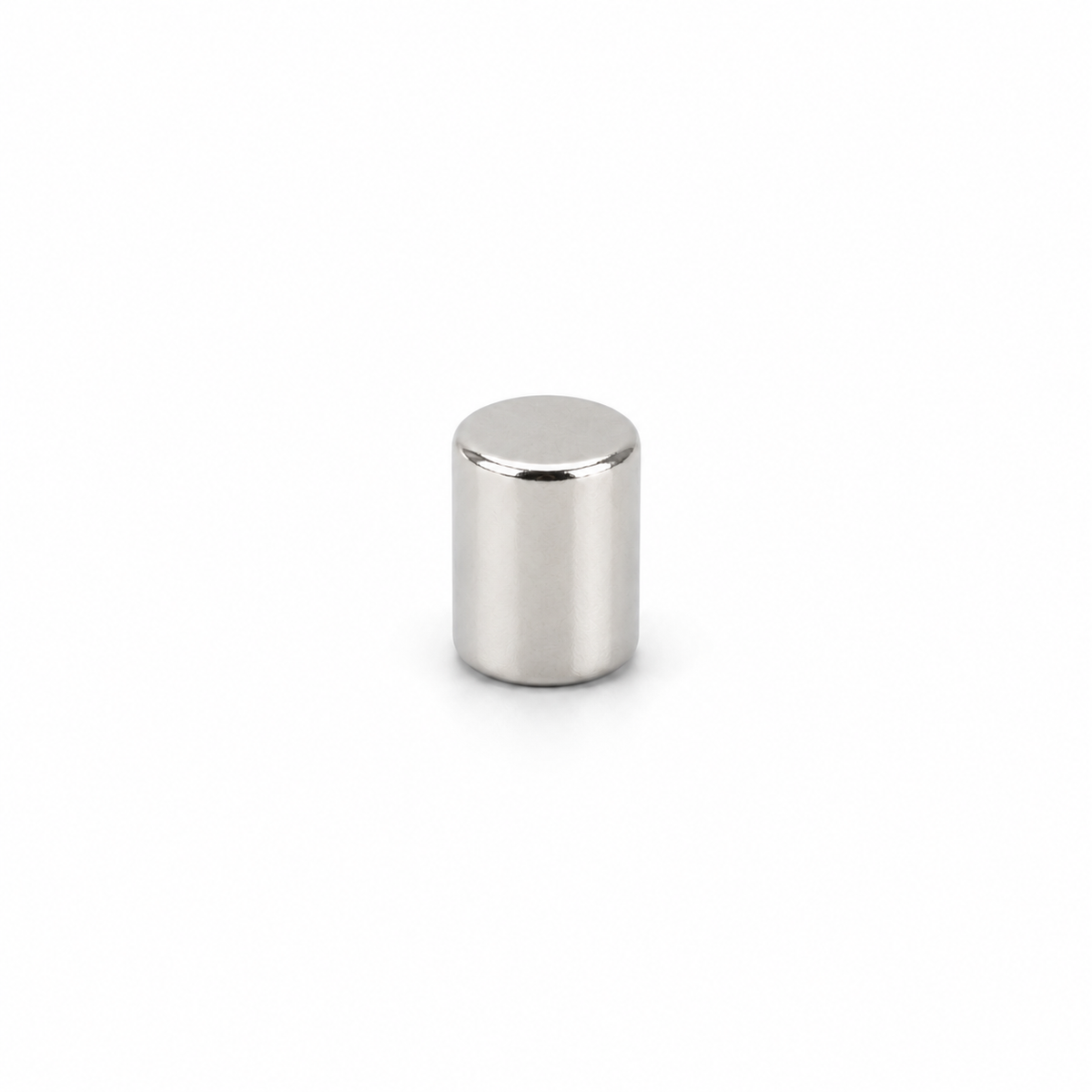

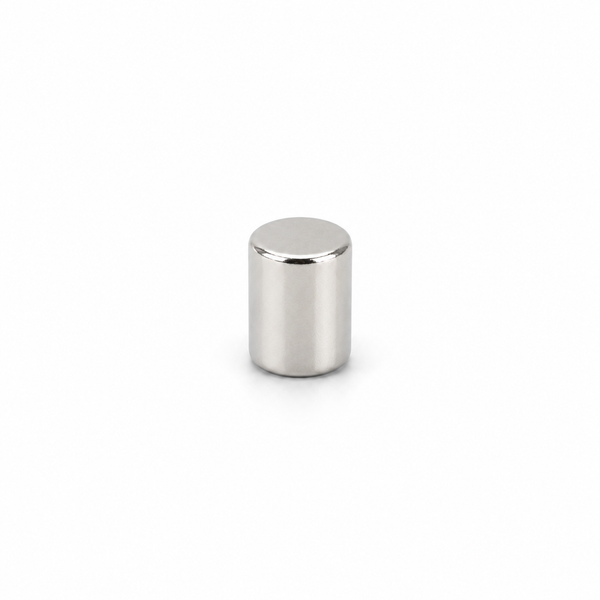

Neodymium Cylinder Magnet - 4mm x 6mm | N45

Product code: C-D4H6-N45

$0.70for 1 to 9 items
$0.61buy 10 to 99 itemsand save 13%
$0.55buy 100+ itemsand save 21%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 4mm x 6mm | N45

Product Code C-D4H6-N45
Pull Force* 639 grams
Weight 3 gm
Style Neodymium Cylinder
Coating Nickel (Ni)
Direction of Magnetisation Axially
Dimensions Height:6mm, Diameter:4mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This popular rare earth cylinder has a diameter of 4mm and a height of 6mm. It is an N45 grade rare earth magnet. It has a magnetic flux reading of 6465 Gauss and a pull force of 0.639kg. It is identified by the AMF magnet part number C-D4H6-N45.

Uses for our rare earth cylinder magnets:

The magnetic field produced by a Neodymium Cylinder shaped magnet is narrower and stronger than a thinner disc-shaped magnet. This makes cylinder magnets ideal for penetrating and locating metal screws and nails inside drywalls and revealing the position of the timber studs inside. For this reason, they are often a key component of commercially made stud finders and other magnetic tools of a similar nature.

Tiny round cylinder magnets such as these are very adaptable and lend themselves to a large array of applications. Rod-shaped magnets make a good choice for handcrafted items such as delicate woodwork or ceramics as they provide a reliable hold with minimal visual impact. The small diameter of the cylindrical shape enables them to be recessed into a 4mm drill hole with ease.

Neodymium Cylinder Magnet - 4mm x 6mm | N45 (C-D4H6-N45)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A

Magnetic Product Description:

This popular rare earth cylinder has a diameter of 4mm and a height of 6mm. It is an N45 grade rare earth magnet. It has a magnetic flux reading of 6465 Gauss and a pull force of 0.639kg. It is identified by the AMF magnet part number C-D4H6-N45.

Uses for our rare earth cylinder magnets:

The magnetic field produced by a Neodymium Cylinder shaped magnet is narrower and stronger than a thinner disc-shaped magnet. This makes cylinder magnets ideal for penetrating and locating metal screws and nails inside drywalls and revealing the position of the timber studs inside. For this reason, they are often a key component of commercially made stud finders and other magnetic tools of a similar nature.

Tiny round cylinder magnets such as these are very adaptable and lend themselves to a large array of applications. Rod-shaped magnets make a good choice for handcrafted items such as delicate woodwork or ceramics as they provide a reliable hold with minimal visual impact. The small diameter of the cylindrical shape enables them to be recessed into a 4mm drill hole with ease.

Neodymium Cylinder Magnet - 4mm x 6mm | N45 (C-D4H6-N45)
