Neodymium Cylinder Magnet - 10mm x 10mm | N52

Product code: C-D10H10-N52

$8.10for 1 to 9 items
$7.13buy 10 to 99 itemsand save 12%
$5.89buy 100+ itemsand save 27%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 10mm x 10mm | N52

Product Code C-D10H10-N52
Pull Force* 4.79kg
Weight 50 gm
Style Neodymium Cylinder
Coating Nickel (Ni)
Direction of Magnetisation Axially (through height)
Dimensions Height:10mm, Diameter:10mm

Magnetic Product Description:

This popular rare earth cylinder has a diameter of 10mm and a height of 10mm. It is an N52 grade rare earth magnet. It has a magnetic flux reading of 6605 Gauss and a pull force of 4.79kg. It is identified by the AMF magnet part number C-D10H10-N52.

Uses for our rare earth cylinder magnets:

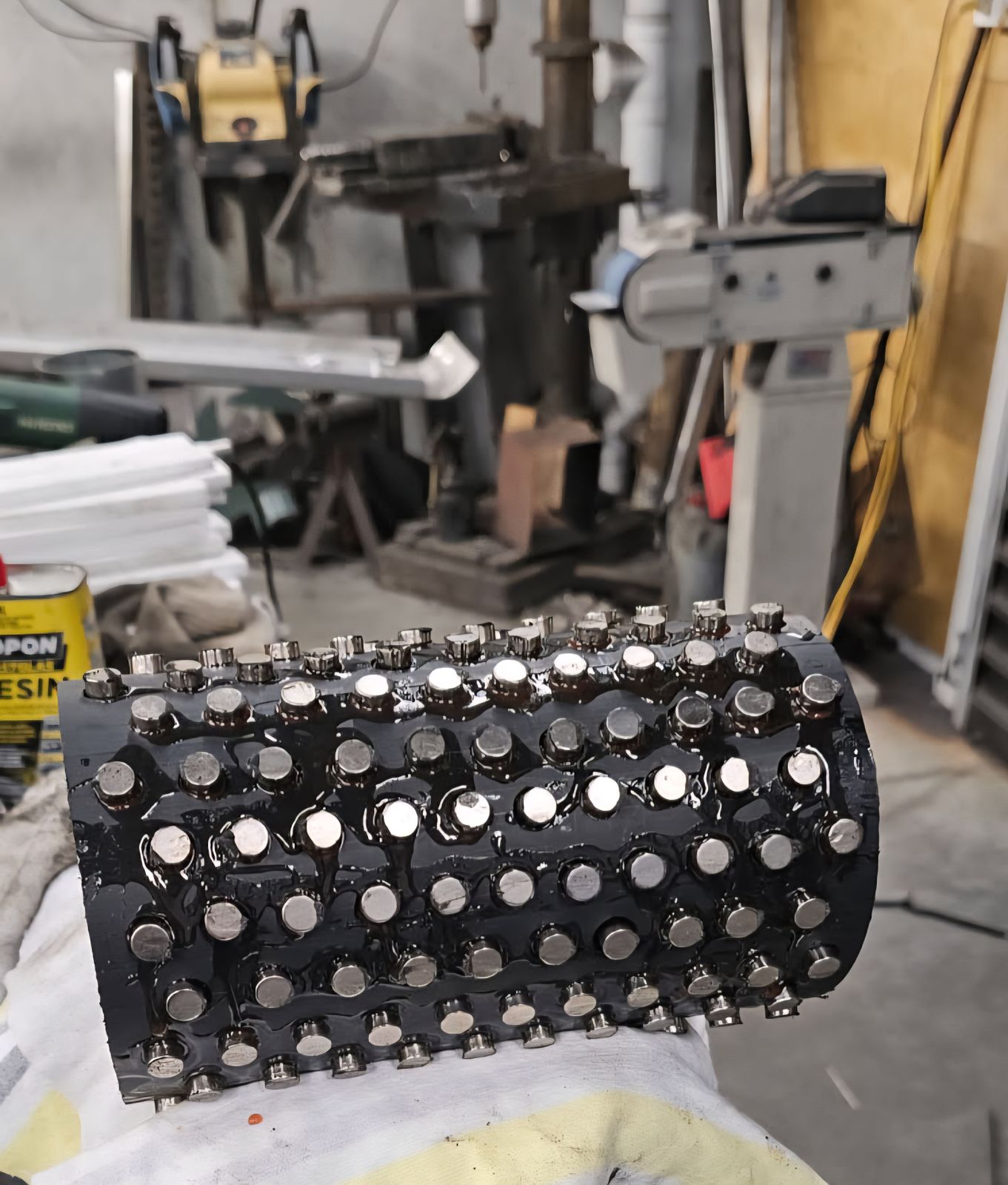

This circular shaped magnet has powerful Neodymium magnetic material inside which has been produced in the strongest available N52 Grade. Round cylindrical magnets fit neatly into drilled holes in surfaces such as timber, acrylic or composite materials. The tiny, yet powerful magnets can be easily secured into a recess with glue and can then bond with a metal plate on an opposite surface to help keep doors closed or open. Neodymium cylinder magnets are used extensively in modern cabinetry designs and other household fittings. Similarly, magnetic joins can be created for temporary signage, retail displays or hobby projects that are strong, removable by applying moderate force and easy to reattach when needed. Magnetic products made with Neodymium material can perform many of the tasks that have traditionally required metal fasteners that can be unsightly and far less practical than magnetic bonds.

Neodymium Cylinder Magnet - 10mm x 10mm | N52 (C-D10H10-N52)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
