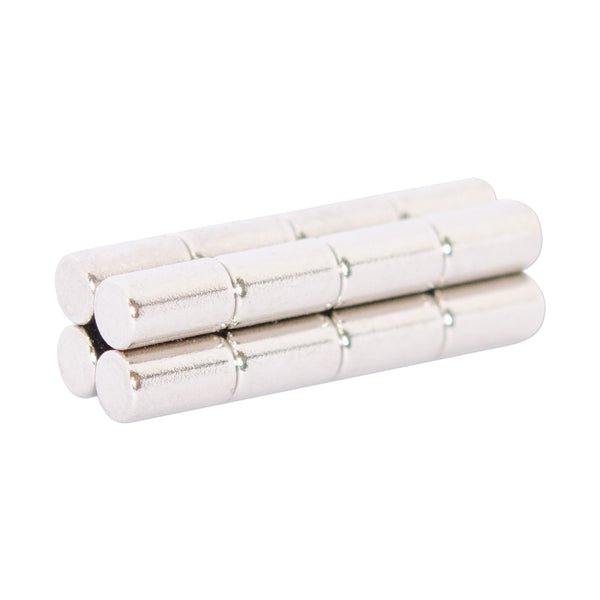

Neodymium Cylinder Magnet - 8mm x 10mm

Product code: 21034

$3.59for 1 to 9 items
$3.12buy 10 to 99 itemsand save 13%
$2.57buy 100+ itemsand save 28%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 8mm x 10mm

Rated 4.7 out of 5
Based on 3 reviews
Product Code 21034
Pull Force* 2.4 kg
Weight 5 gm
Style Rare Earth Cylinder magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:10mm, Diameter:8mm

Magnetic Product Description:

This magnet has an 8mm diameter and a height of 10mm. It has a flux reading of approx 5849 Gauss and a pull force of approx 2.4 kilos. It is identified by the AMF magnet part number 21034.

Uses for our rare earth cylinder magnets:

This cylinder magnet is the item used by the Magnart proprietary product that is sold globally as a reusable magnetic display system for hanging artwork or any other graphic material. N35 Grade magnetic material is weaker than the standard in pull-force, but this facilitates easy removal and replacement of the magnet and also helps to reduce damage to valuable artwork surfaces. This is a specialised magnet for hanging lightweight, delicate material and the combination of dimensions and weaker grade Neodymium are ideally suited to this purpose. It is commonly used in Galleries, Museums, Exhibition halls, Common rooms and Photographic studios,

Neodymium Cylinder Magnet - 8mm x 10mm (21034)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 4.7 out of 5
Based on 3 reviews
  • 5 Stars
    2 Reviews
  • 4 Stars
    1 Review
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
3 Reviews
Reviewed by Vinny
I recommend this product
Rated 5 out of 5
Review posted

8x10 neodymium magnet

Excellent service, I needed to replace a broken magnet in an electronic ignition and these were a perfect fit

Loading...
Was this helpful?
Reviewed by Inge
I recommend this product
Rated 5 out of 5
Review posted

Excellent service ad perfect product

I was needing to find a replacement magnet for my dog door and fell upon this website. I found exactly what I needed and it was delivered in days. Excellent service.

Loading...
Was this helpful?
Reviewed by Grazza
I recommend this product
Rated 4 out of 5
Review posted

strong but mighty

we use these for electromagnetism teaching - little magnet but strong field, and cheap in bulk for class sets

Loading...
Was this helpful?
