Neodymium Cylinder Magnet - 6mm x 6mm

Product code: 21045

$1.35for 1 to 9 items
$1.07buy 10 to 99 itemsand save 21%
$0.91buy 100+ itemsand save 33%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 6mm x 6mm

Rated 5.0 out of 5
Based on 3 reviews
Product Code 21045
Pull Force* 1.2 kg
Weight 1 gm
Style Rare Earth Cylinder magnet
Coating Nickel ( NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:6mm, Diameter:6mm

Magnetic Product Description:

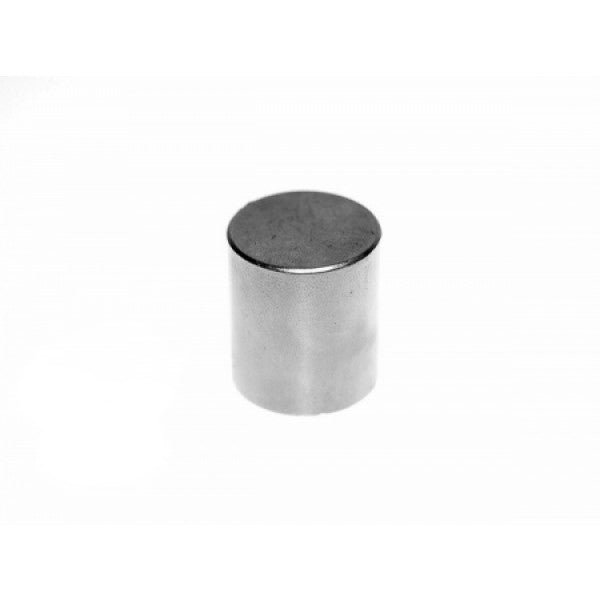

This rare earth cylinder magnet has a diameter of 6mm and a height of 6mm. Identified by the AMF magnet part number 21045. It has a pull force of 1.2 kilos against 3 mm mild steel. It has a flux reading of 5635 Gauss.

Uses for our rare earth cylinder magnets:

Because of their shape, cylinder magnets are ideal for inclusion into closure mechanisms, seals and joins for component parts of items like scale models and hobby equipment. These small Neodymium Cylinder magnets fit easily into drilled holes and can be secured with epoxy glue into the recess. Metal surfaces can be attached in this way, or in other situations, similarly recessed cylinders embedded in another surface and arranged with the opposite pole will create a magnetic bond that is strong but also removable. Bonds like this can be removed and reattached endlessly and without the need for tools or mains power. This simple, clean and efficient method of attachment is used by decorators, costume and theatre set designers, 3D model makers, artists, jewellery makers and hobbyists. Remote control toys such as cars, trains or planes with magnetically attached parts suffer much less damage during accidents and collisions. Components detach under excessive force but can instantly be reattached to their original position.

Neodymium Cylinder Magnet - 6mm x 6mm (21045)

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 3 reviews
  • 5 Stars
    3 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
3 Reviews
Reviewed by Boat S.
I recommend this product
Rated 5 out of 5
Review posted

All good

Good value, good service, good shipping

Alls good

Loading...
Was this helpful?
Reviewed by Magneto
I recommend this product
Rated 5 out of 5
Review posted

Great

Items as expected, arrived in good time, all good.

Loading...
Was this helpful?
Reviewed by Paul W.
I recommend this product
Rated 5 out of 5
Review posted

Great little product

Using 2 to 'locate' a ceremonial gavel in a presentation box.

Loading...
Was this helpful?
